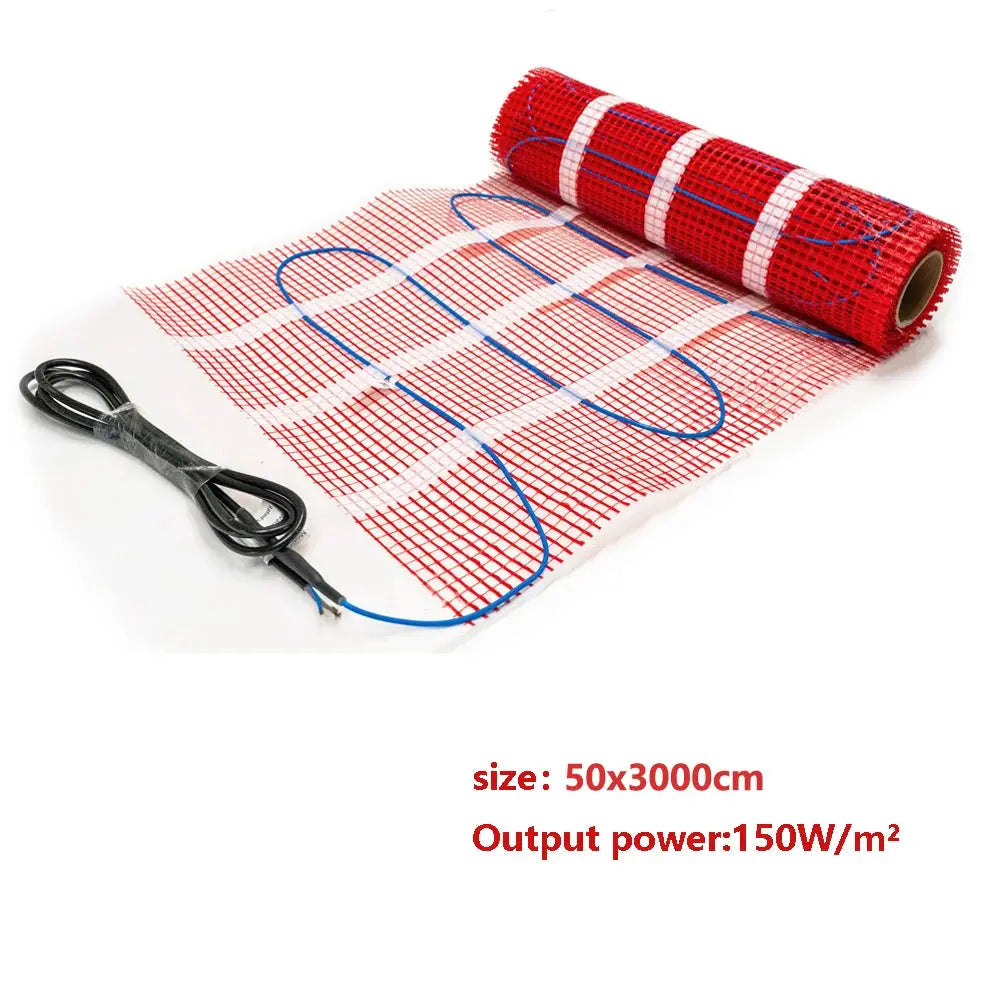

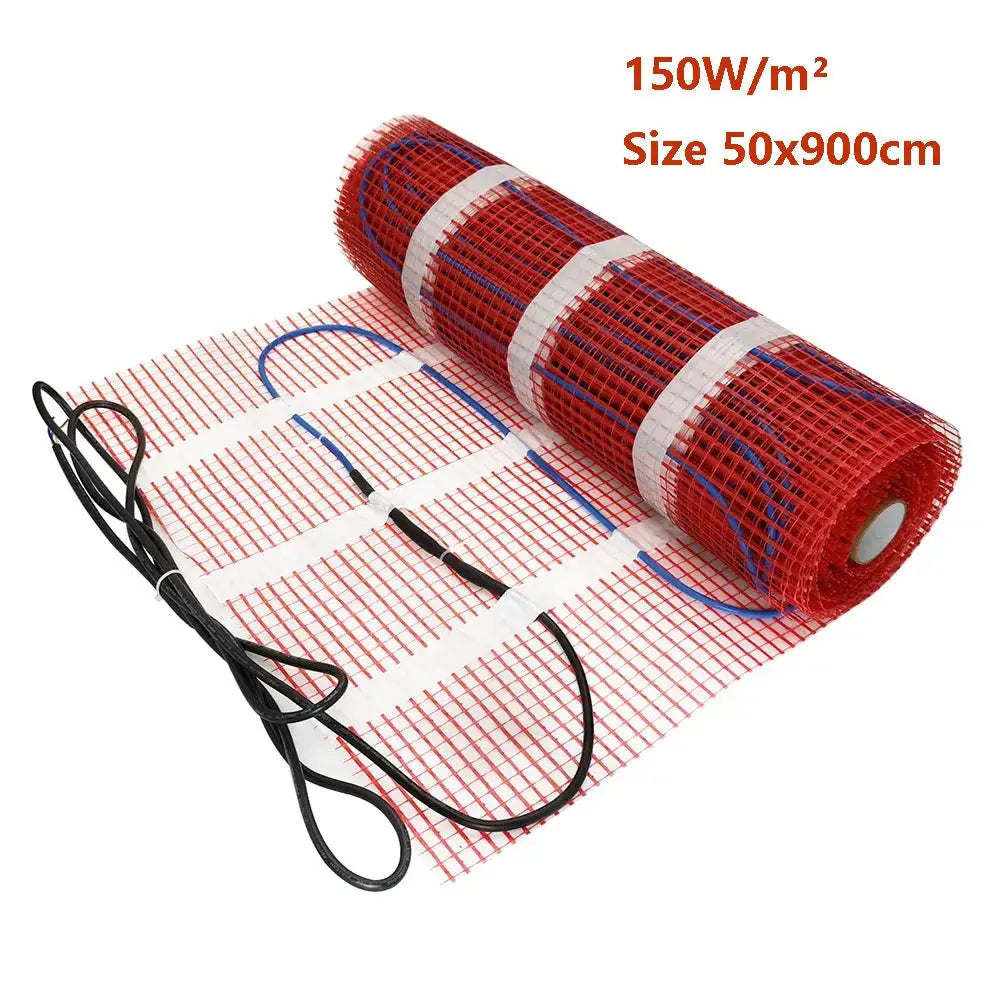

Warm Mat Electric Radiant Self-Adhesive Floor Double Conductor Cable Heating System Kit Or Under Tile & Laminate Stone Under Timber Floor Heating

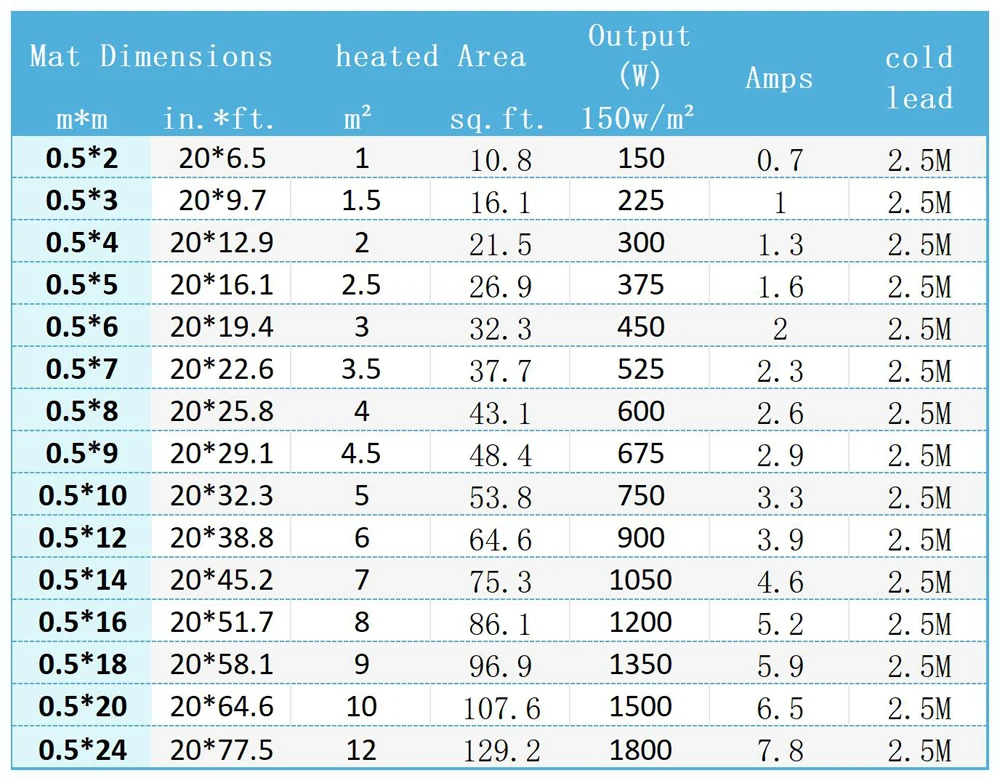

Product parameter

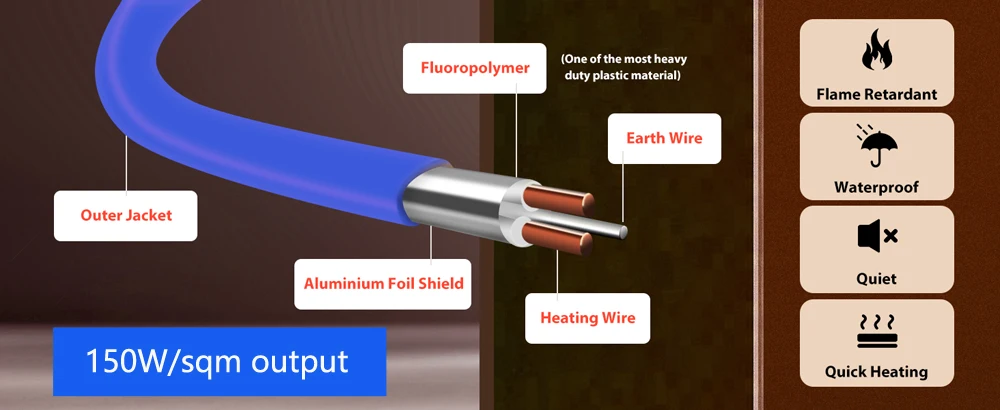

Cable Construction：Two conductor
Rated Voltage：230V
Output：150w/m2
Mat width：0.5m

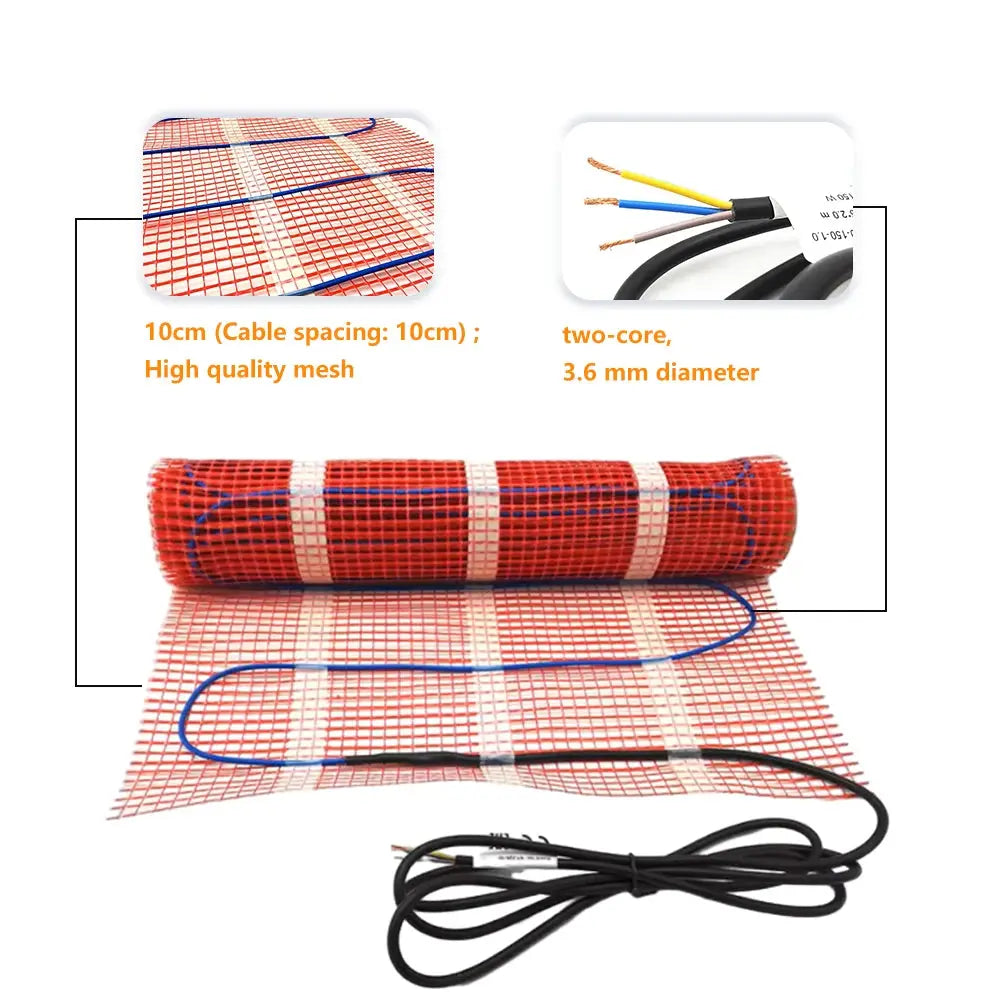

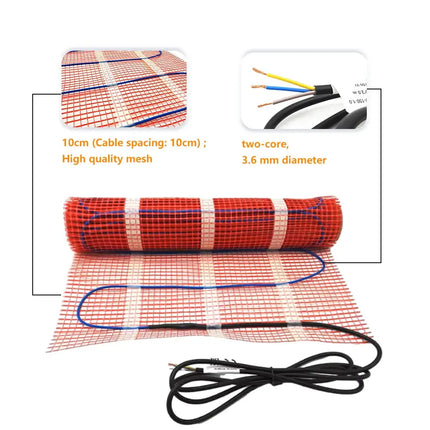

Cable spacing：100mm
Cable diameter: 3.6mm±1
Min. bending radius: 25mm
Conductor Insulation：Fluoropolymer
Outer insulation:Fluoropolymer
Max Ambient Temp：85℉(30℃)
Min Installation Temp：40℉(5℃)

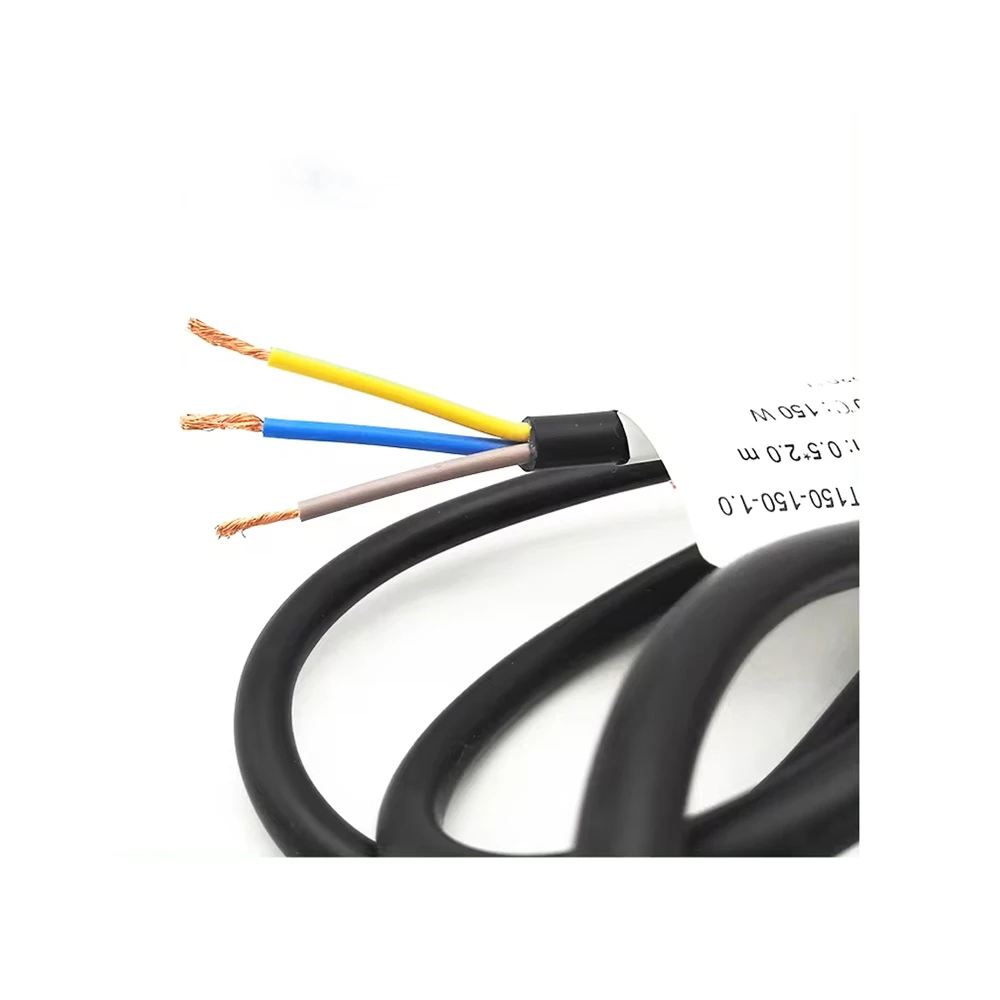

cold lead：2.5m length
Protection degree：IPX7
Humidity during installation ≤80%
Certification: CE/EAC/ETL/EMC, etc

Note：

Please do always buy at least 90% smaller than the room area.And XPS Insulation Boards is needed for energy saving.

Shipping Reminder: If you need a fast delivery via the UPS, Fedex, DHL express, Please contact us first.

Packing List：

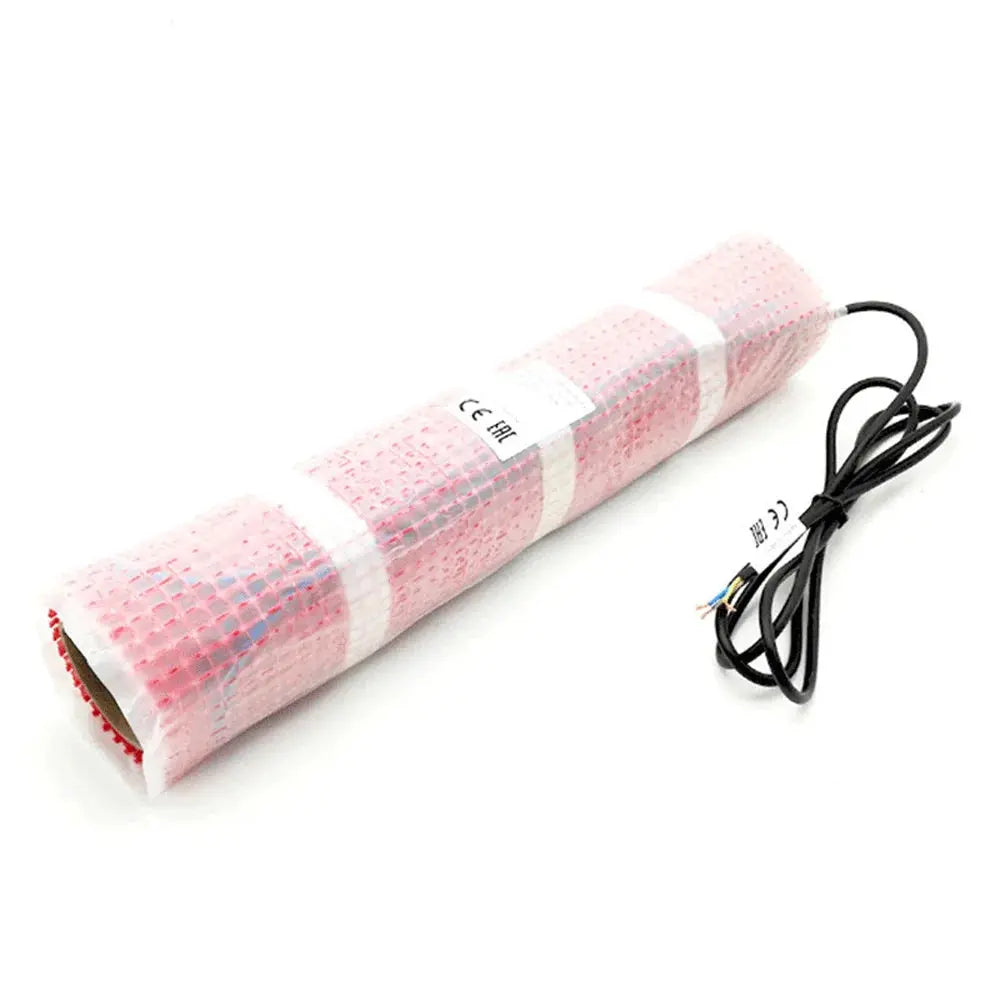

1pcs Heating mat

Features：

1.Very quick warm floor effect after switching on.
2.Flexible heating cable that facilitates shaping the mat.
3.Simple assembly.
4.Possible installation as basic or additional heating.

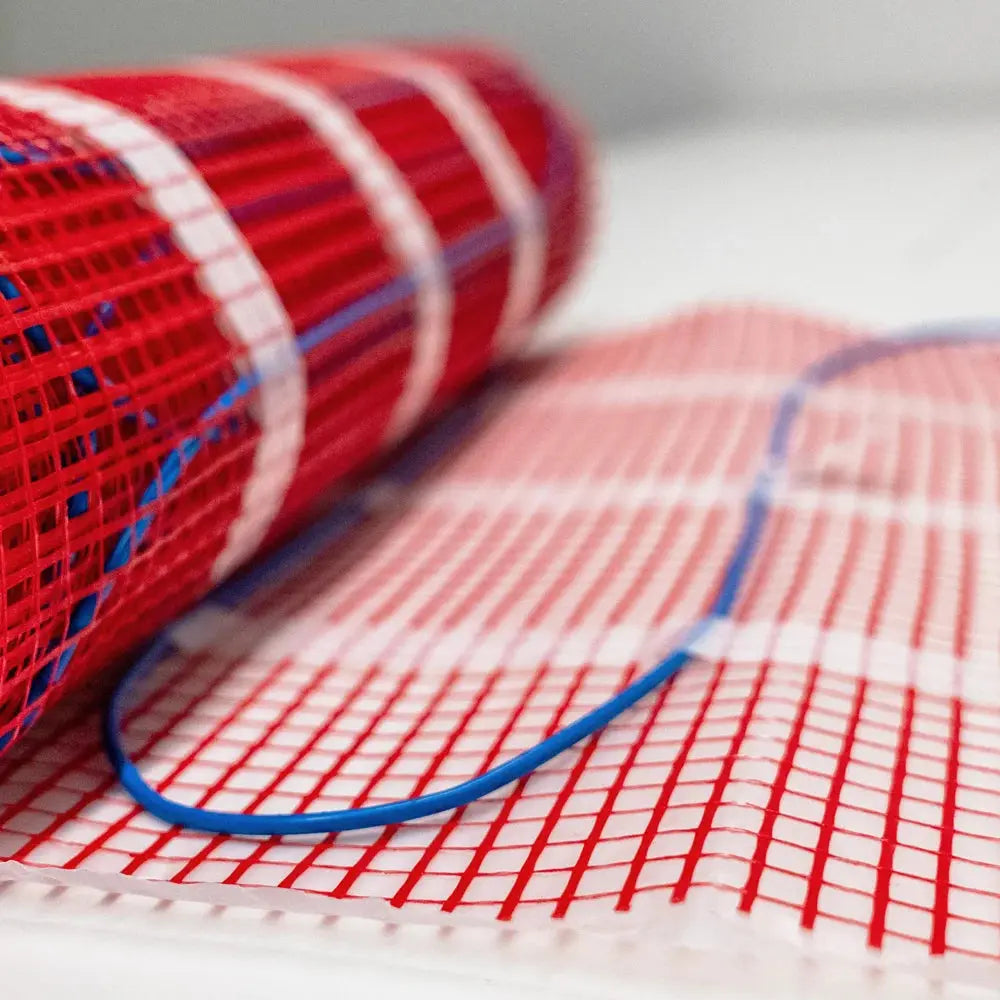

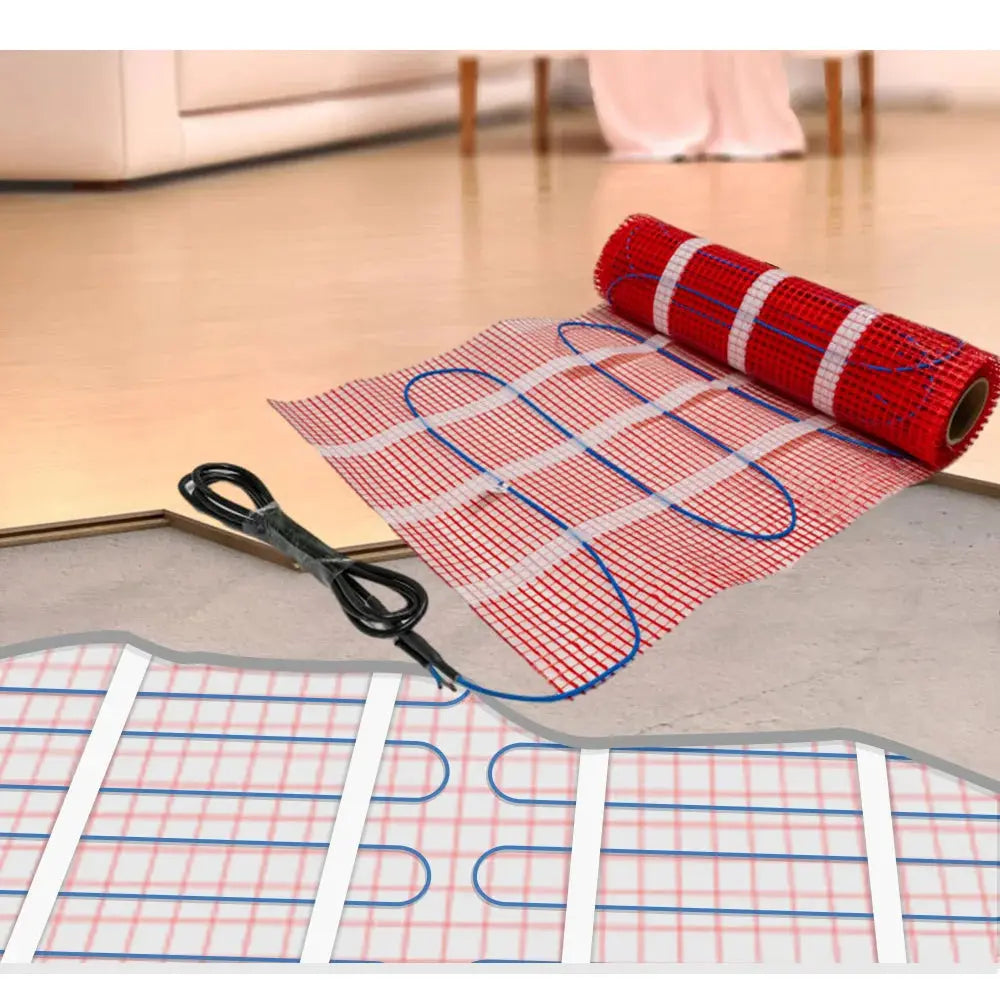

5.Pre-configured heating element mounted on a self-adhesive fibreglass 500mm wide mesh with a single 2.5m long cold tail.
6. 30-year warranty (for product quality, excluding improper installation or misuse).
7.3.6mm outer diameter, low installation height, saving installation cost.
8.Double guide structure, one end cold wire, easy to install.
9.Completely free from electromagnetic radiation

Friendly Reminder:

-Before installing the heating pad, please check the integrity of the heating cable and connecting joints.
- Use control and measurement devices to check if the characteristics (resistance) of the pad meet the requirements while the power is disconnected.
-Do not connect a rolled-up heating pad to the power grid. Avoid subjecting the heating pad to mechanical stress.

FAQ：

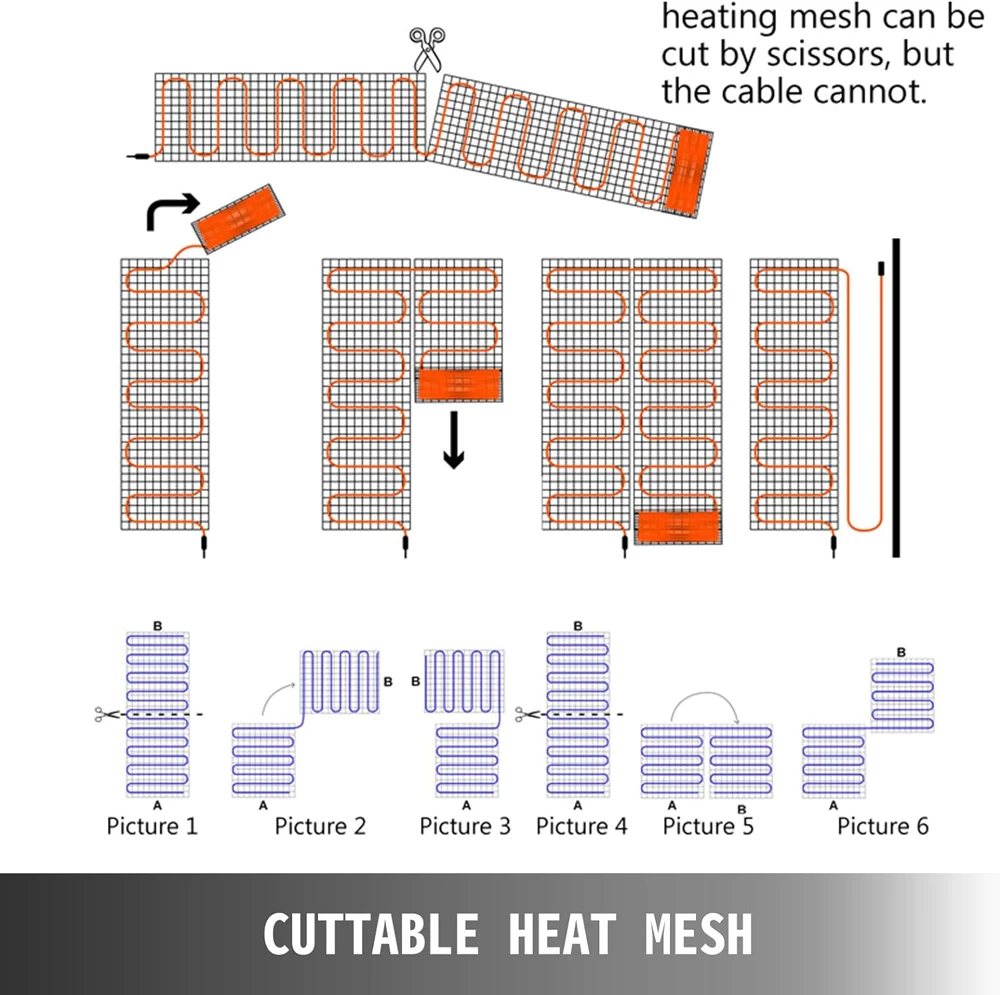

1. Is it possible to cut or shorten the mat?

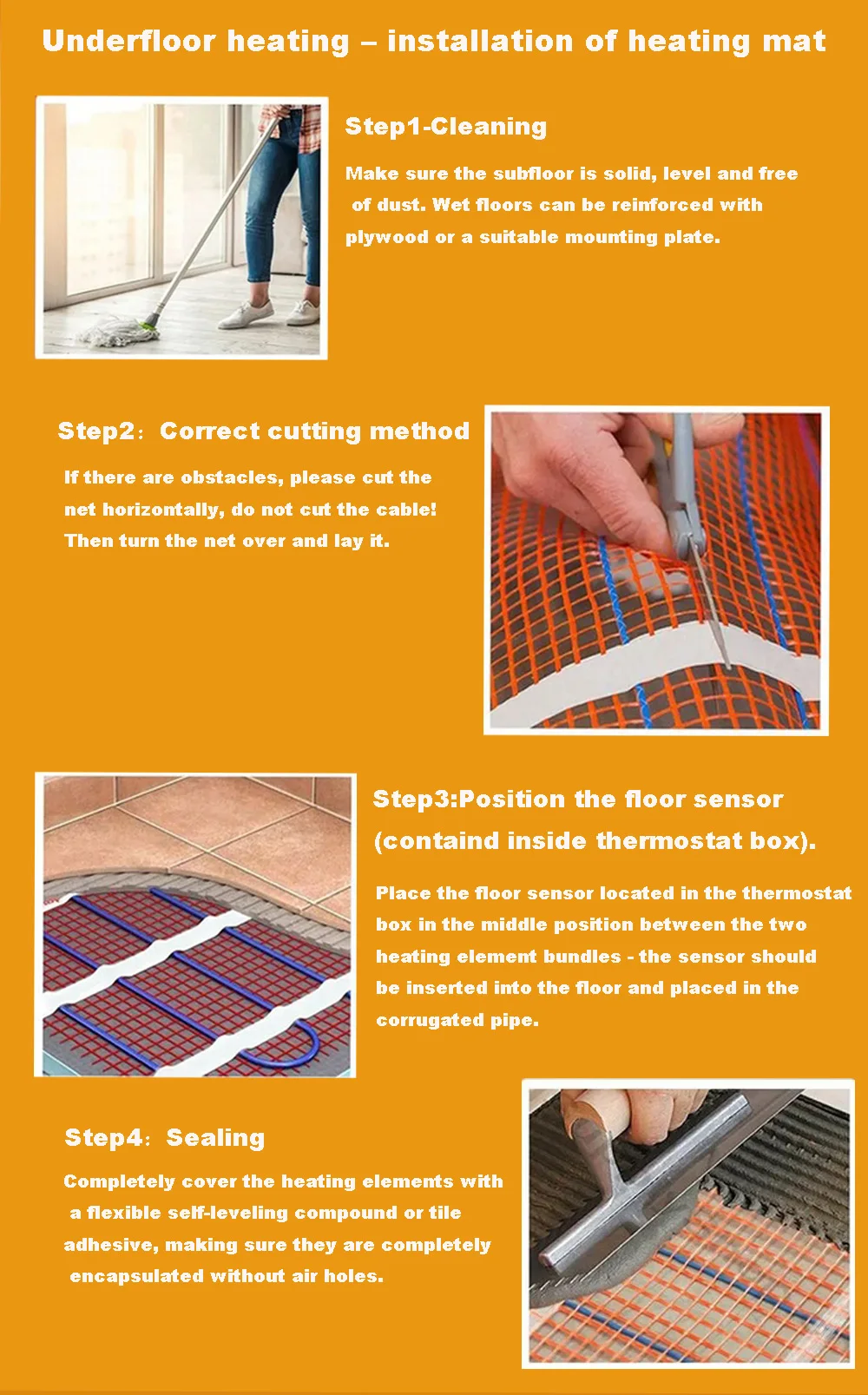

It is forbidden to shorten the heating mat (cutting the heating cable). However, it is possible to cut the mesh to which the heating cable is attached, so that we can adjust the mat to the size of the room.

2. Can heating cables overlap?
It is forbidden to overlap or cross heating mats. The distance between the cables must be at least 8 cm.

3. What glue should be used for assembly?

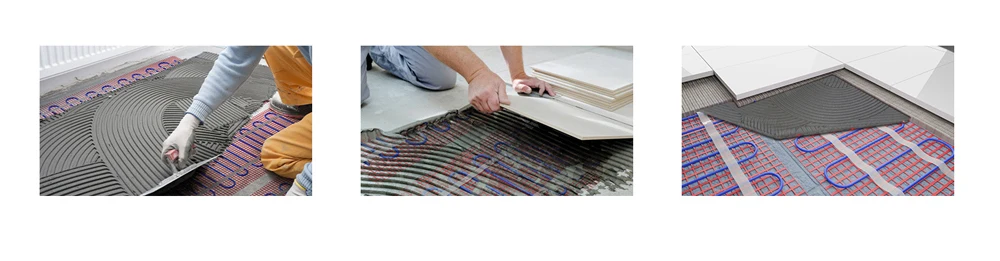

To glue the substrate, it is necessary to use flexible adhesive for underfloor heating.

4. Is it possible to install a mat under the bathtub or shower tray?
It is prohibited to install the mat under the bathtub or shower tray.

5.Is it possible to assemble the mat yourself?
Yes. However, great care should be taken during installation to avoid damaging the heating cable.

6.Is the heating mat suitable under floor panels?
No, we do not install heating mats under floor panels. We install heating foil under the panels, which is available on our other auctions.

7.Can we connect the mat ourselves?
Unfortunately not. The heating mat is connected by an electrician with valid SEP qualifications.

8.Can a permanent structure be placed above the heating mat?
No, it is not recommended to install the mat under fixed structures and the minimum height of furniture legs above the mat is 3 cm.

9.What to do when the heating mat was damaged during assembly?
It should be reported to the electrician who made the math connection. The cause of the failure may be a malfunction of the controller, thermostat, sensor, damage to wires or mats.

10.How to check if the mat after assembly is working properly?
It is necessary to measure the resistance of the heating vein and insulation and compare them with the parameters in the technical documentation.

11.Is it possible to cross or apply heating cables?
No, the heating floor mat cannot be installed in a way that requires the application or interbreeding of the wires. The minimum interval between the wires should be 8 cm.

12.Can the mat be cut during installation?
It is forbidden to cut the wires, the mat can be shortened only by inciting the mesh.
