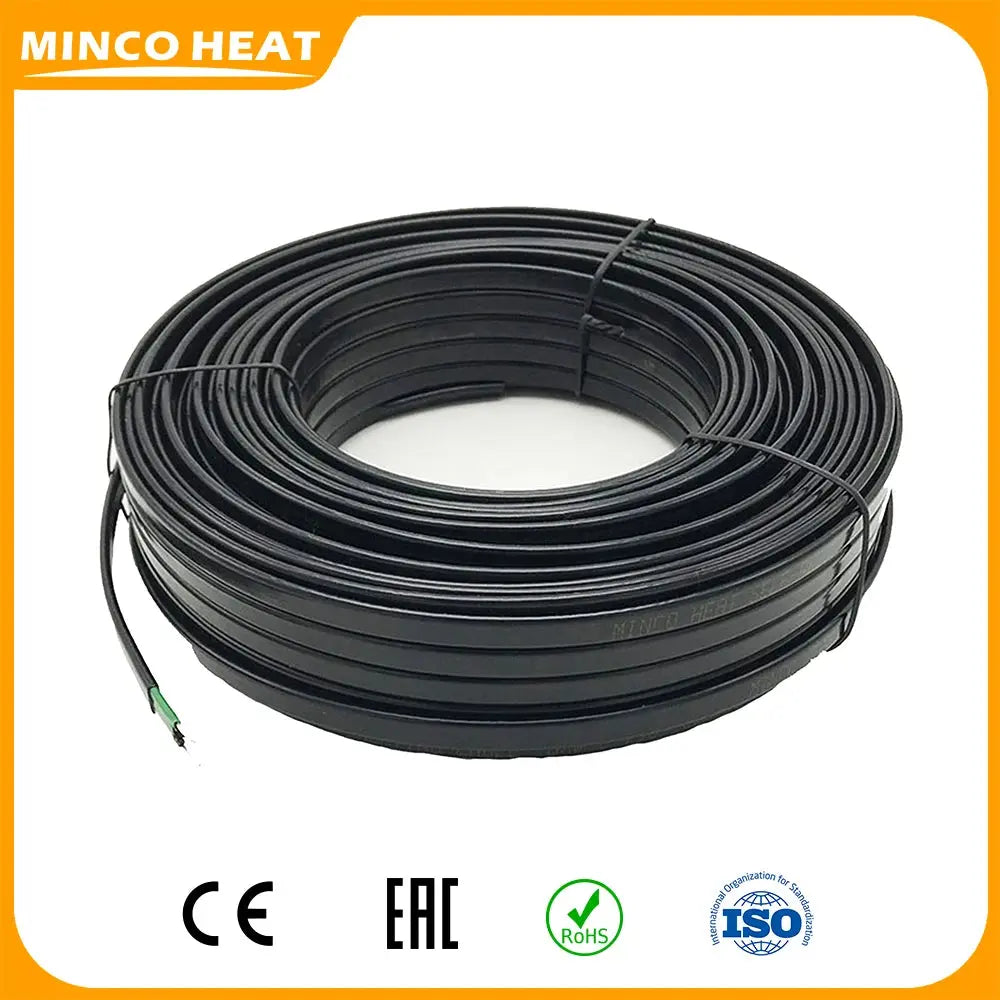

Minco Heat Water Pipe Frost Protection Heating Cable
€47,80 €31,87 Incl. BTW
-
Guaranteed secure & safe checkout.
- Vandaag verstuurd? Je hebt nog:
- No hassle returns, 30 days return
Omschrijving
Minco Heat 12V 24V 110V 220V Water Pipe Anti-freeze Frost Protection Heating Cable for Roof Self Regulating Electric Heater Wire

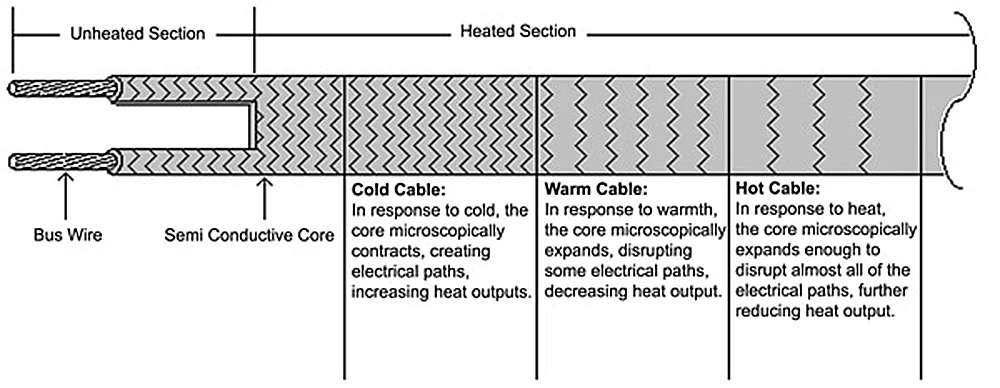

Self-regulating Working Principle:
>>This cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications.
>>The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary.
>>The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality.
Technical Datas:
Cable type: self-regulating heating cable
1. Working voltage: 12V, 24V DC, 110V, 220V AC
2. Rated power: 15W/m, 20W/m, 25W/m (at 10C degrees)
3. Max maintain temperature: 65C degrees
4. Max enduring temperature: 135C degrees
5. Width * Thickness: 12V, 24V, 110V (8mm * 3mm); 220V (10mm * 3mm)
6. Min bend radius: 15mm
7. Conductor: tinned copper wire
8. Jacket: PE
9. Max circuit length: 220V,50m; 110V,30m; 24V,20m, 12V,5m.
Structure:
1. Copper conductor
2. Conductive heating element
3. I nside extra insulation
4. PE outer sheath

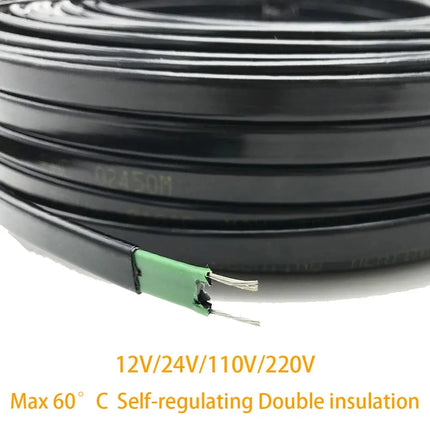

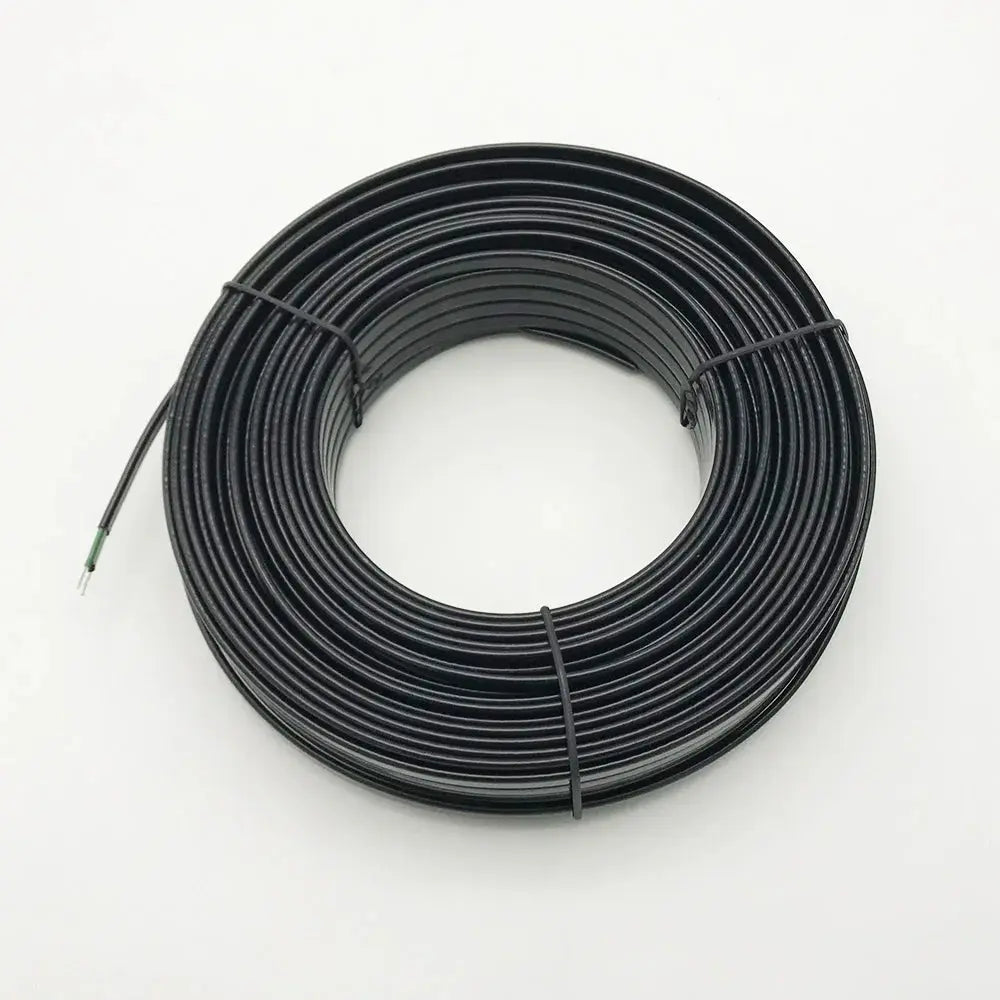

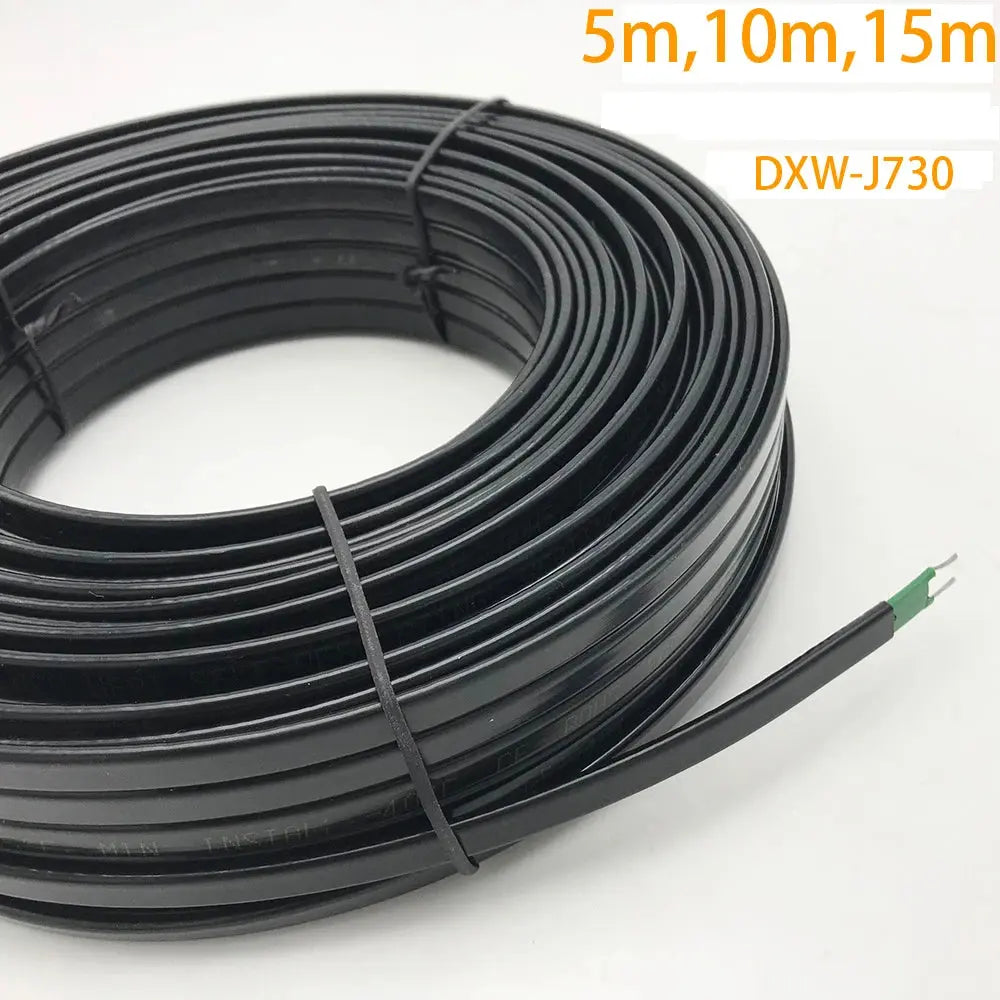

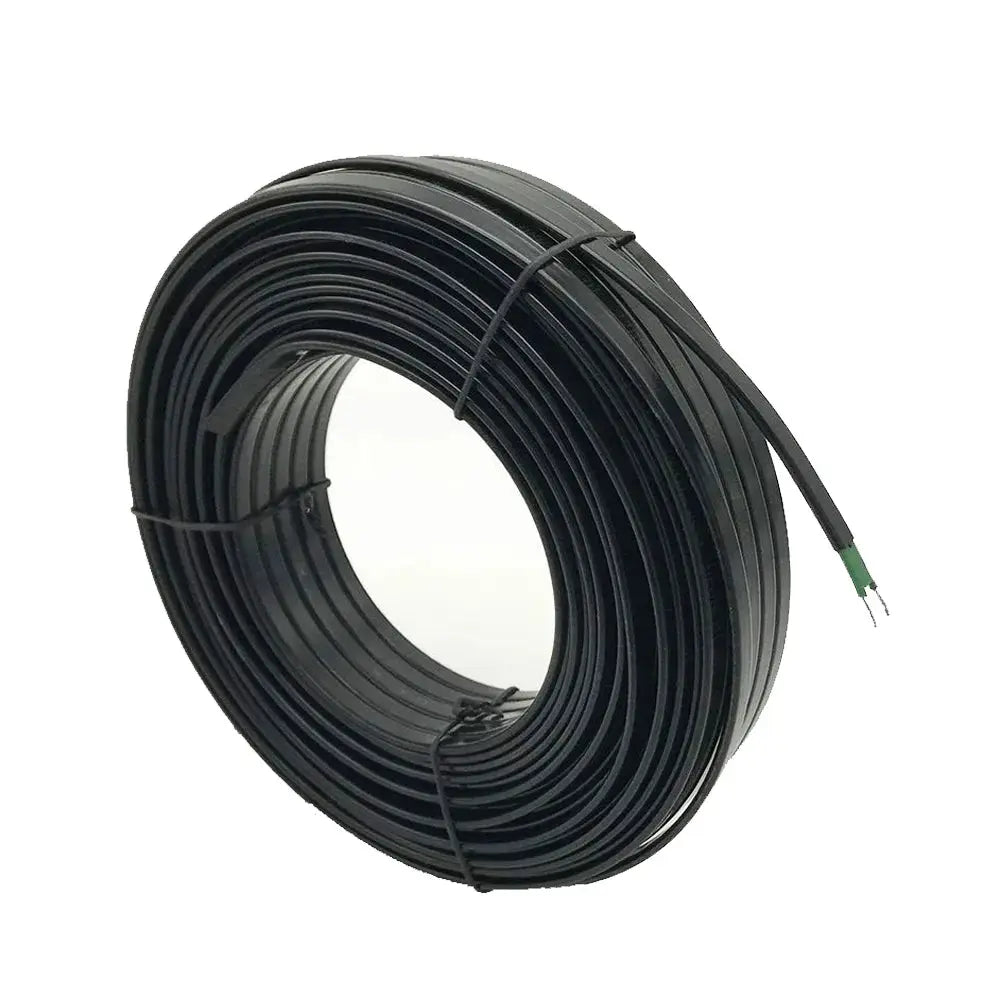

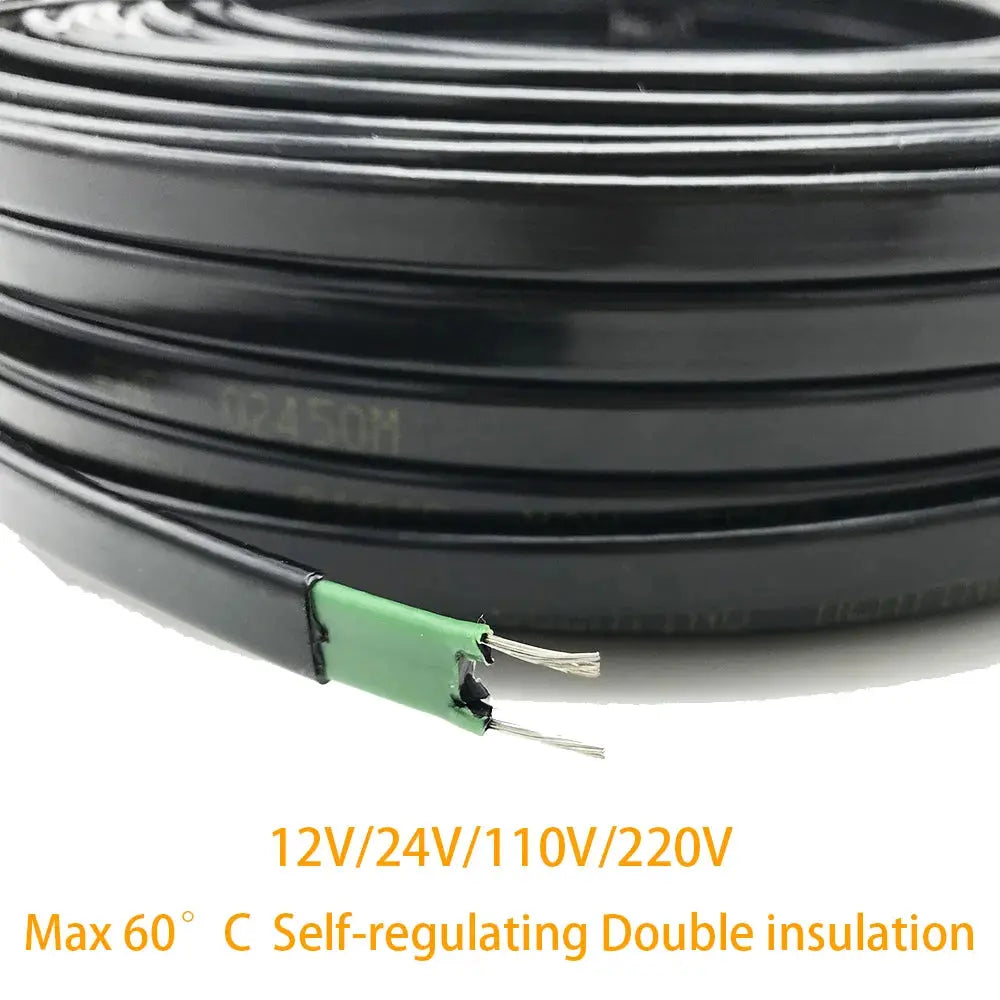

Product Photos:
Installation Steps:
1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape. DO NOT connect the two conductors together!
2) Connect the other end with cold wire or plug (for connecting to the power supply).
3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).
4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
5) Connect or plug into 12V, 24V, 100~120V, 220~240V (according to your cable). The heat trace system is finished.
Tips:
Max circuit length ~ 50 meters (220V);
Max circuit length ~ 30 meters (110V);
Max circuit length ~ 20 meters (24V);
Max circuit length ~ 5 meters (12V).

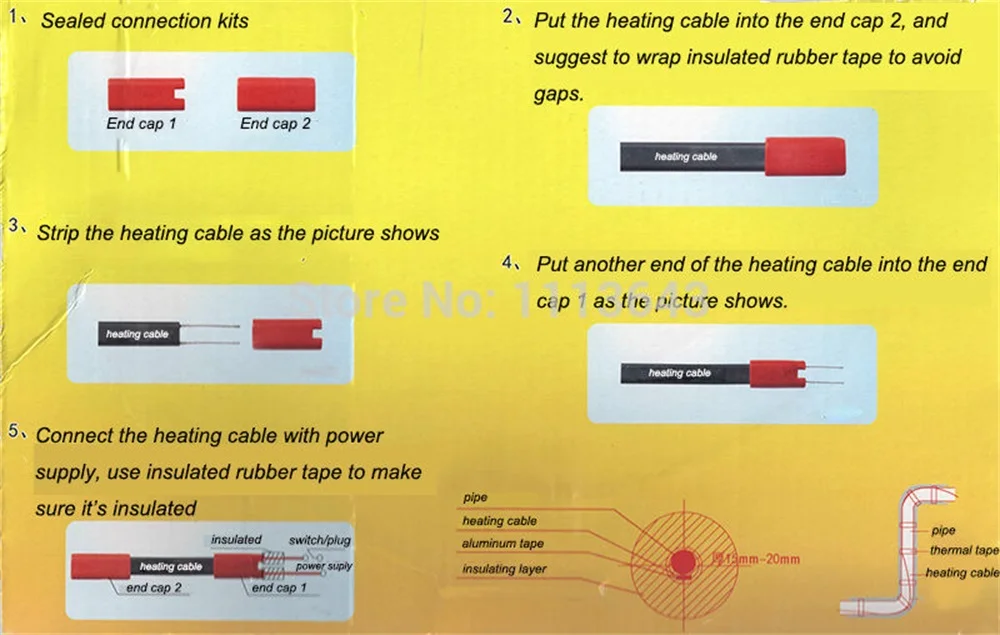

We have the rubber caps for easily making the connections, if need, please click the following picture to buy :

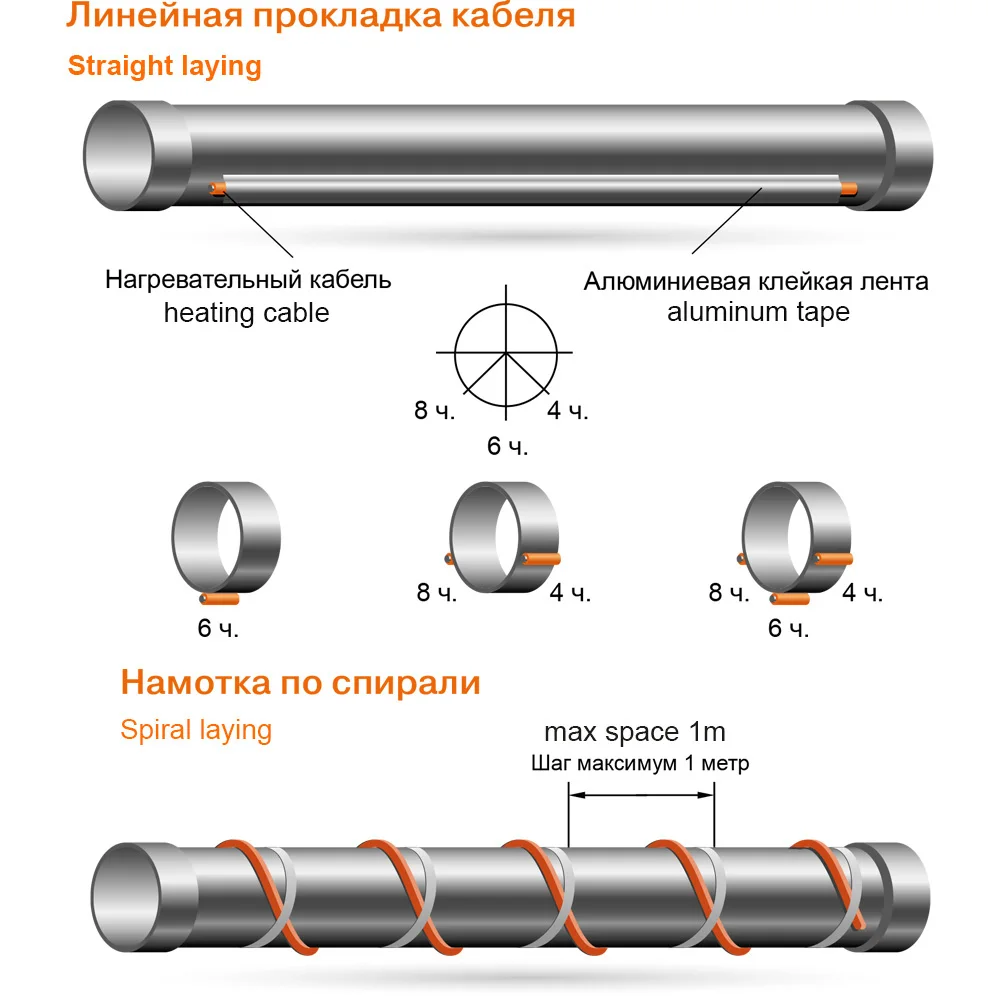

Installation on Pipes:
Specificaties
- Weight: 200gr
- Usage: Indoor & outdoor
Plus- en minpunten
- Duurzaam geproduceerd
- ideaal voor dagelijks gebruik
