Thermostat + electric floor heating mat system

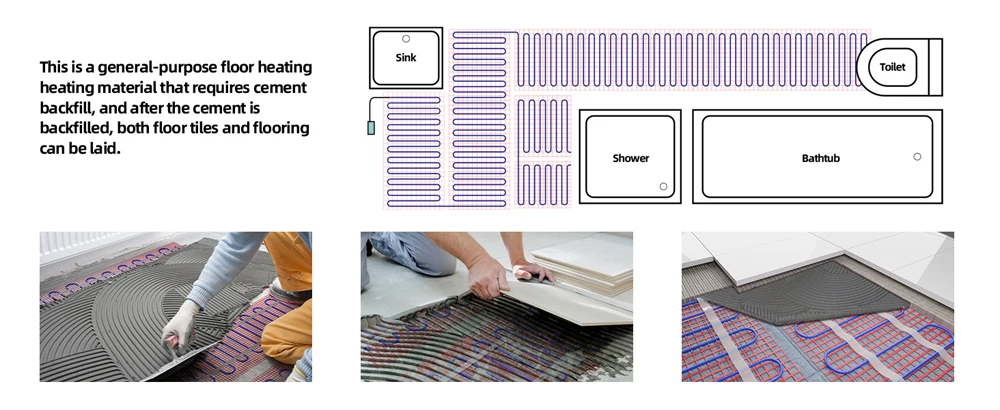

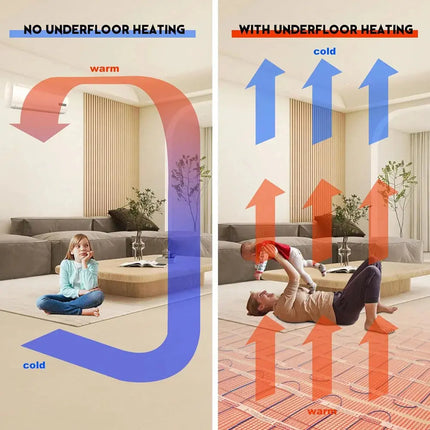

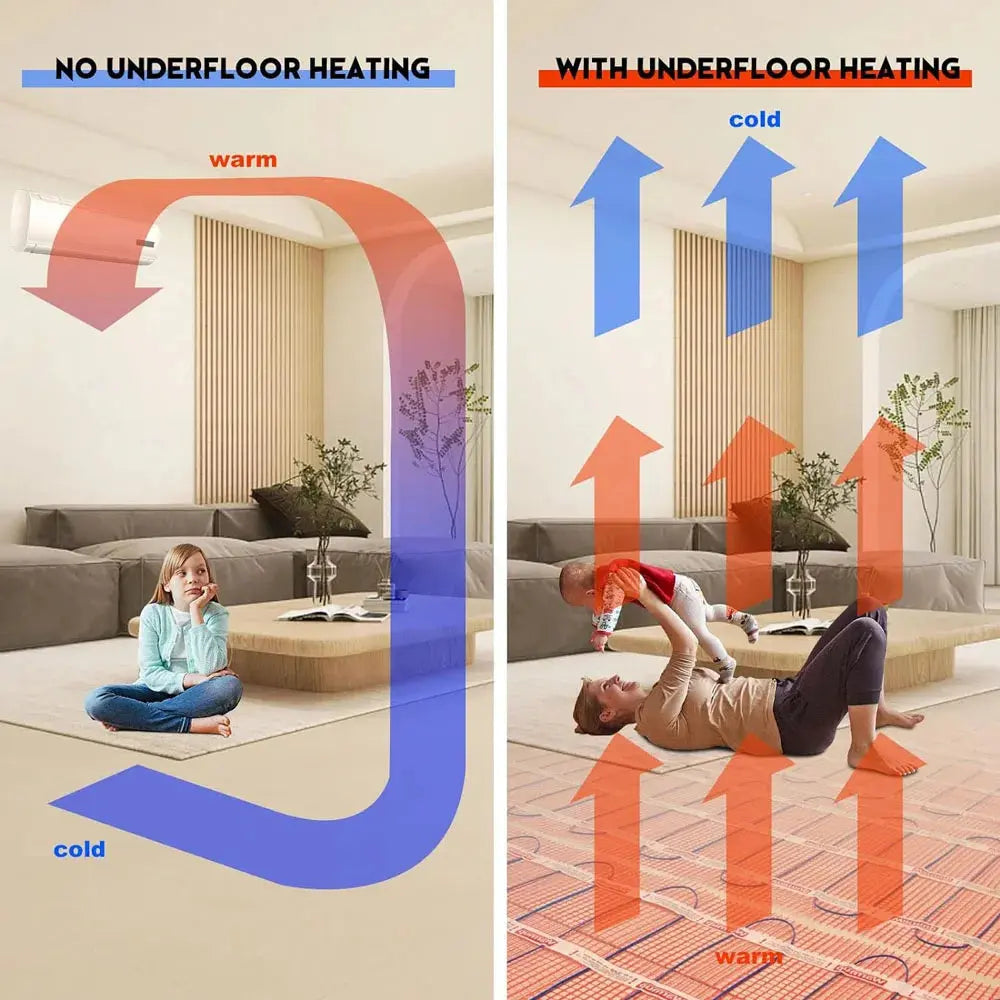

Floor heating mats are intelligent heating products specially designed to be installed beneath the floor, which enhance indoor temperature by heating the floor surface. They are convenient to install, efficient, energy-saving, and provide comfortable heating.

Floor heating mats are widely used in heating systems for various types of buildings, including residential homes, office buildings, shopping malls, hospitals, etc. Especially in cold regions or places requiring high-quality living environments, floor heating mats are highly favored for their unique advantages.

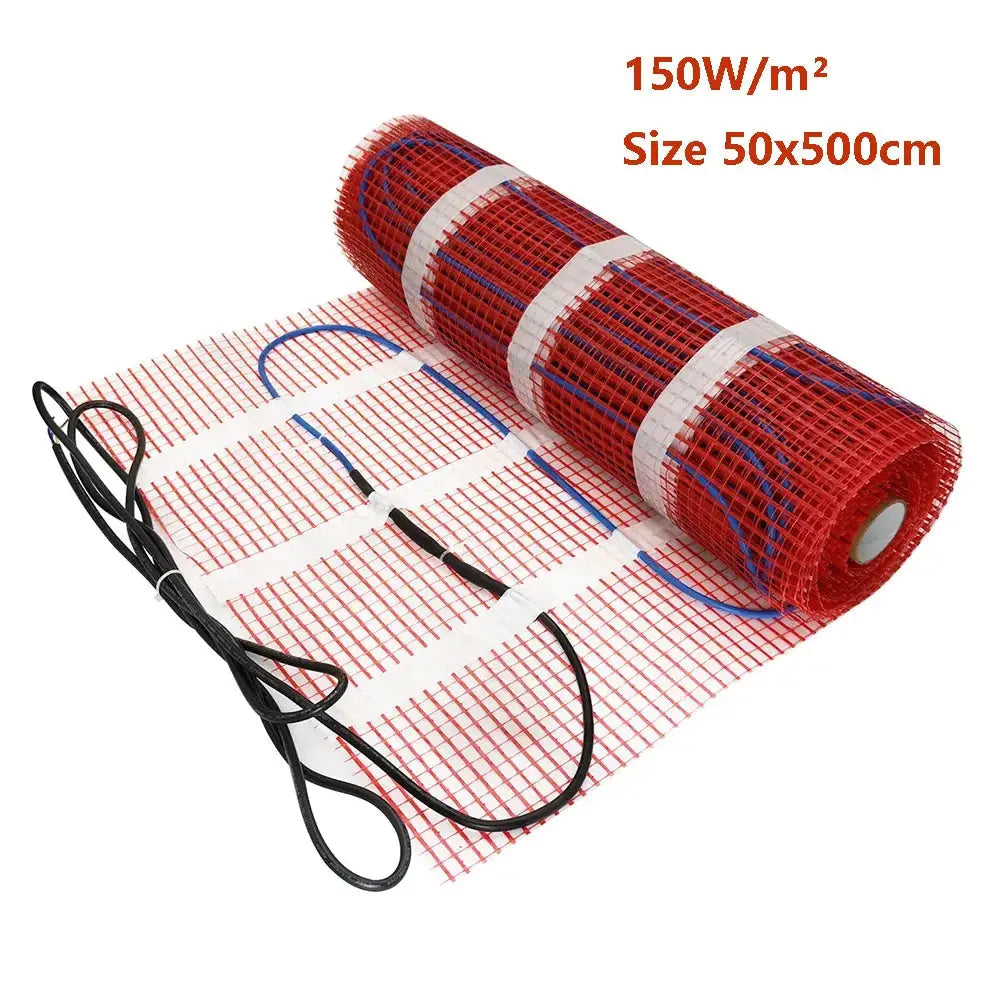

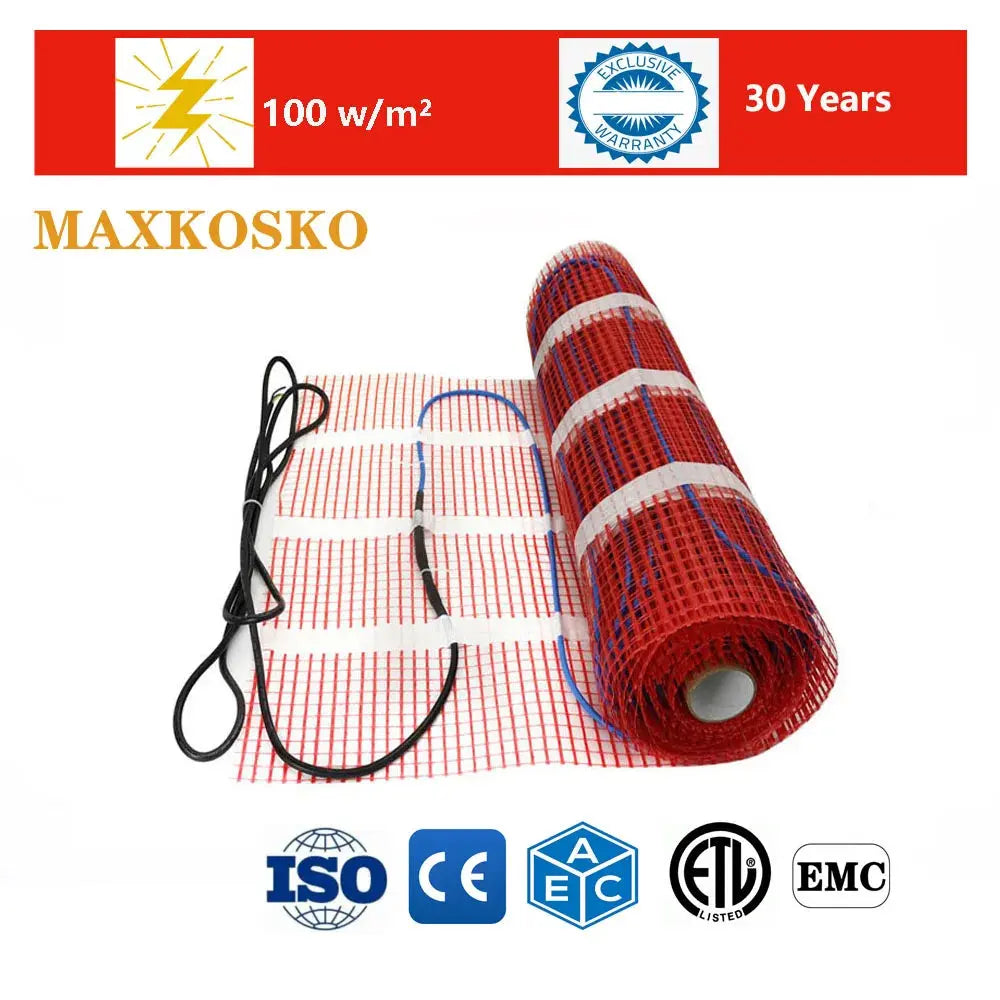

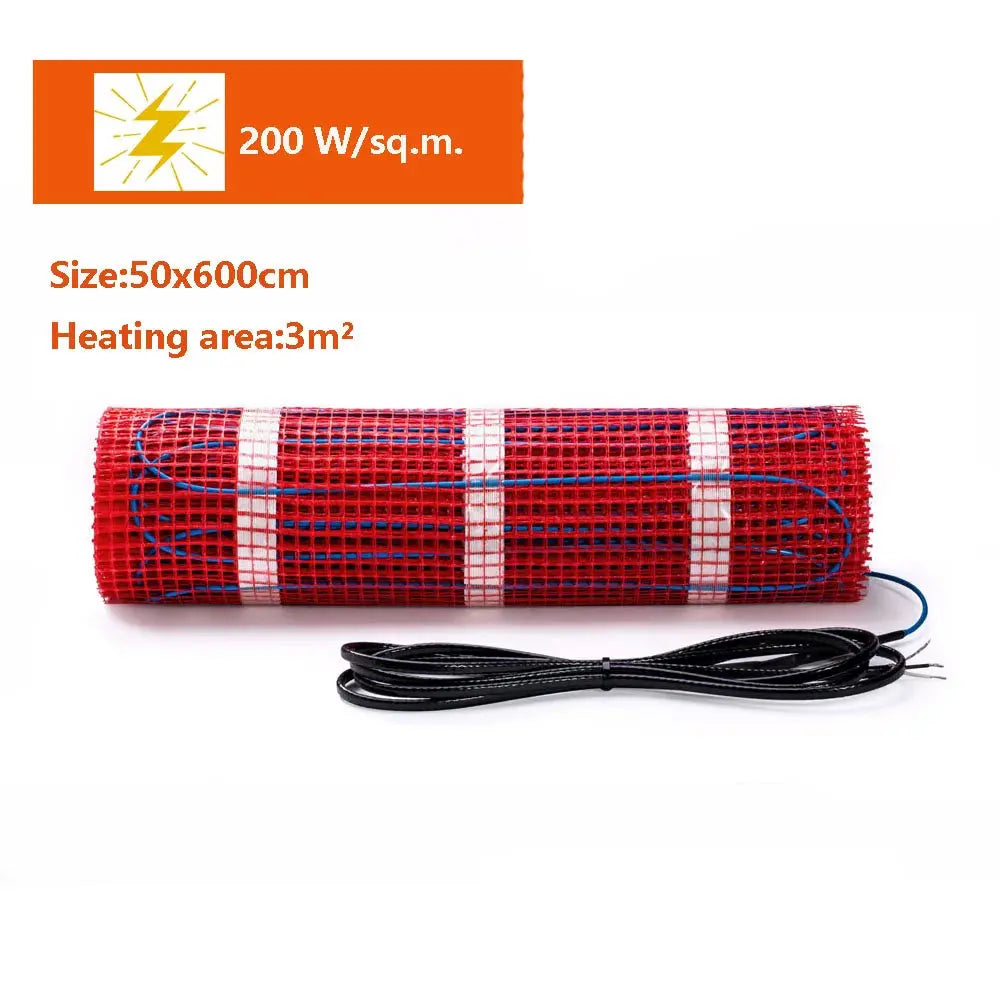

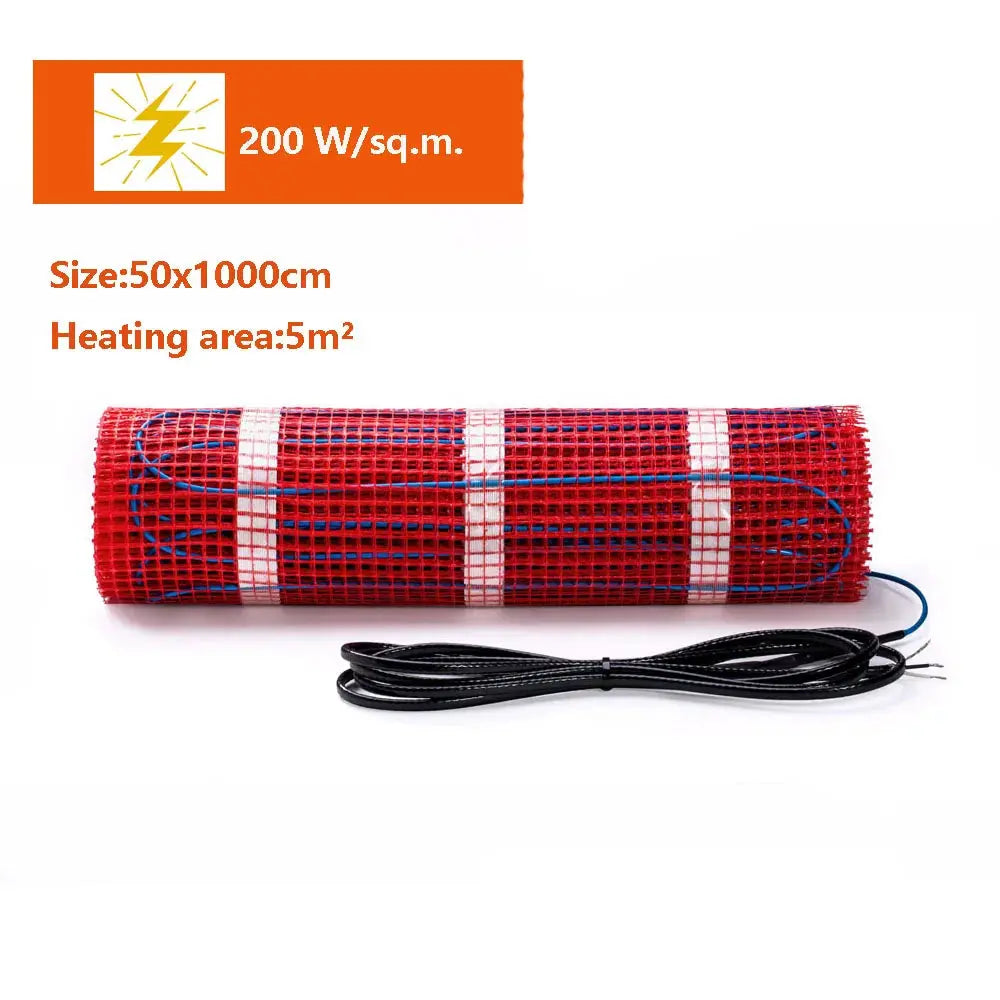

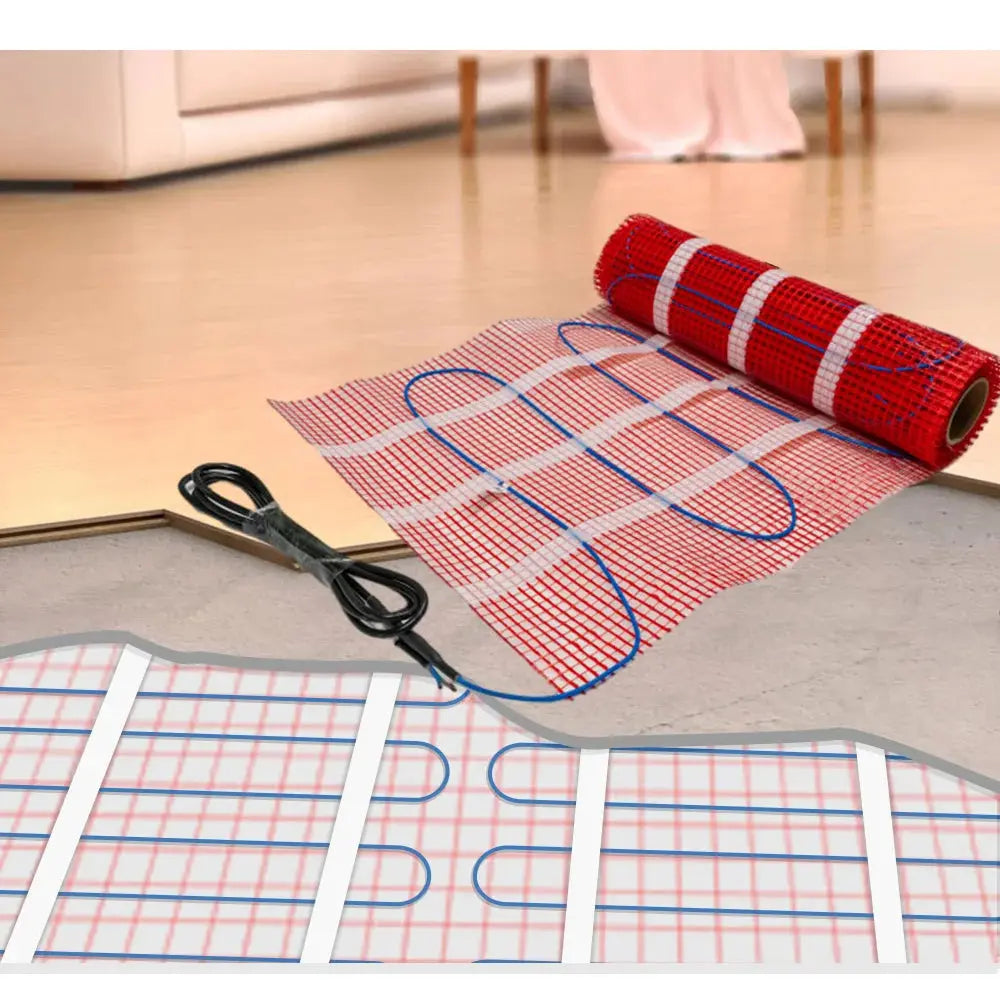

Electric floor heating Mat

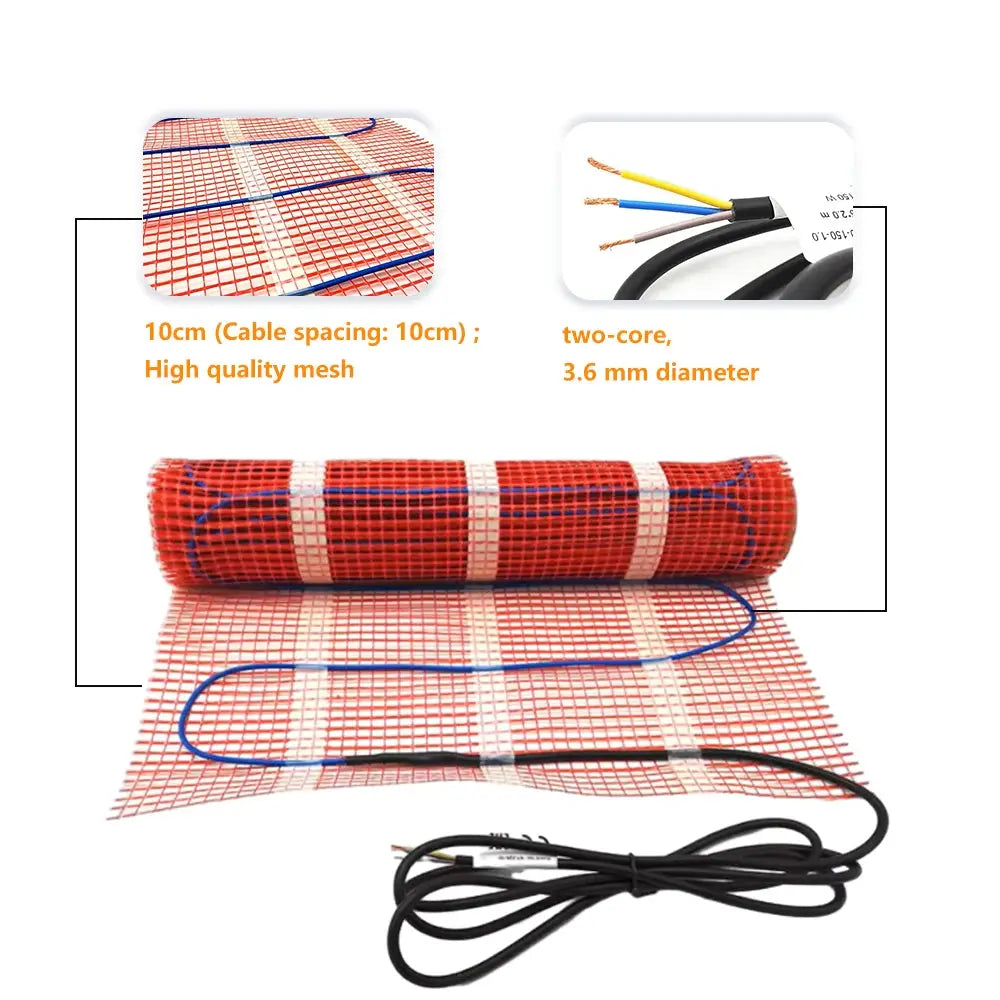

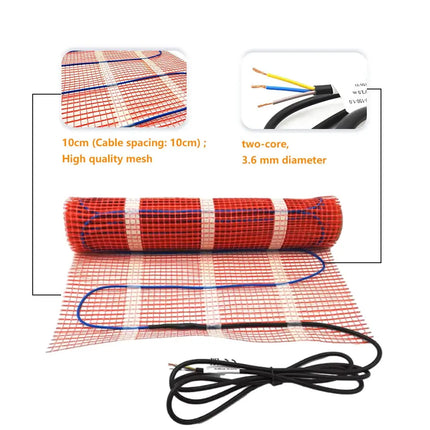

Cable Construction：Two conductor
Rated Voltage：230V
Output：100W/m²、150/m²、200/m²
Cable spacing：80mm
Cable Diameter：2.66mm
Conductor Insulation：Fluoropolymer
Max Ambient Temp：85℉(30℃)
Min Installation Temp：40℉(5℃)
cold lead：2.5m length
Insulation: High temperature fluoroplastic (FP)
Jacket: FEP
Warranty: 30 years (product quality, excluding improper installation or misuse)
Protection degree：IPX7
Humidity during installation ≤80%
Certification: CE/EAC/ETL/EMC, etc

Max. heating temperature:
- 100w/m2 can reach about 40℃~60℃
-150w/m2 can reach about 50℃~70℃
- 200w/m2 can reach about 60~80C

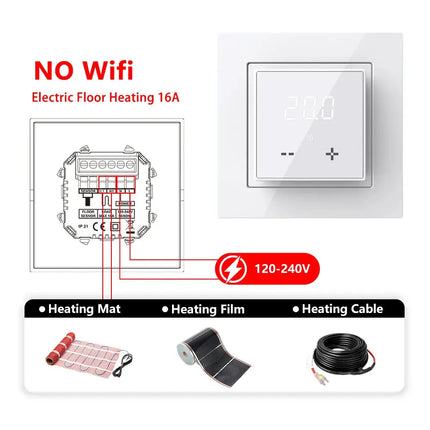

Thermostat

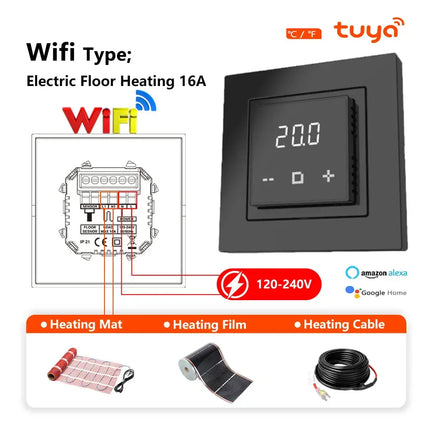

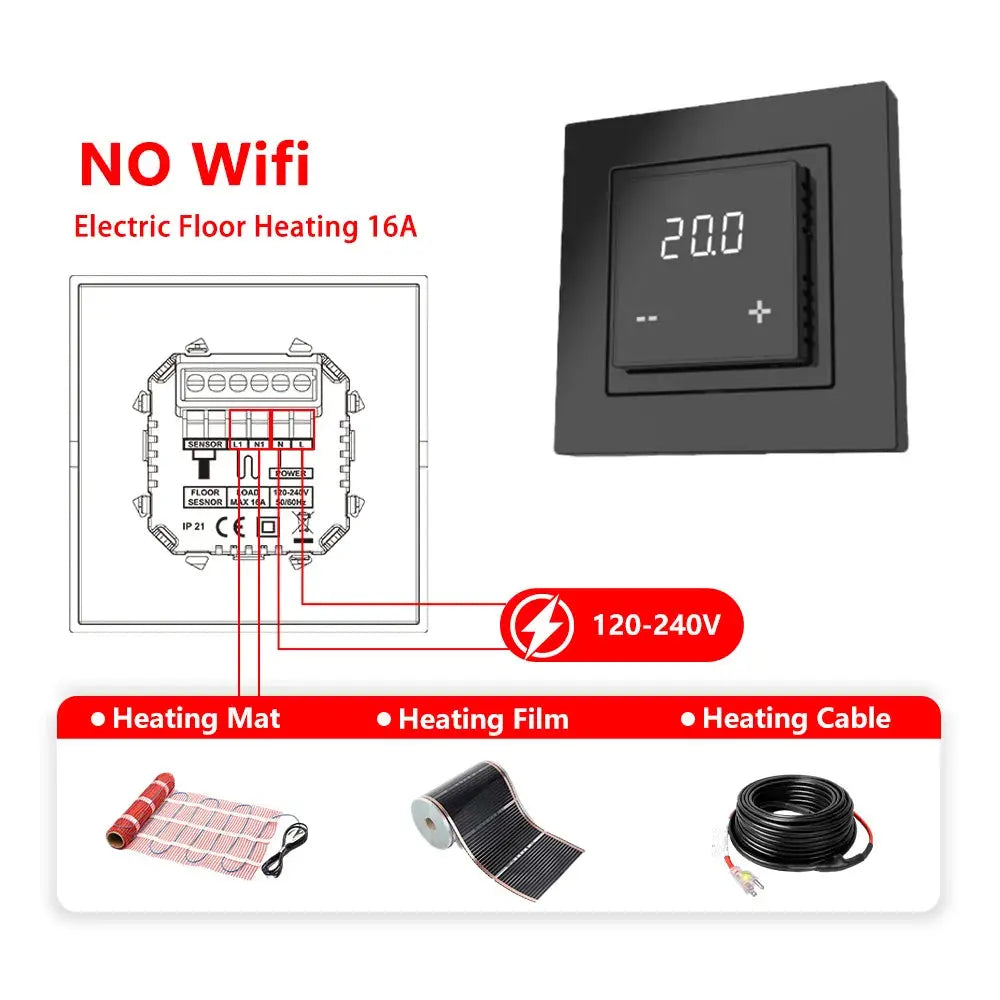

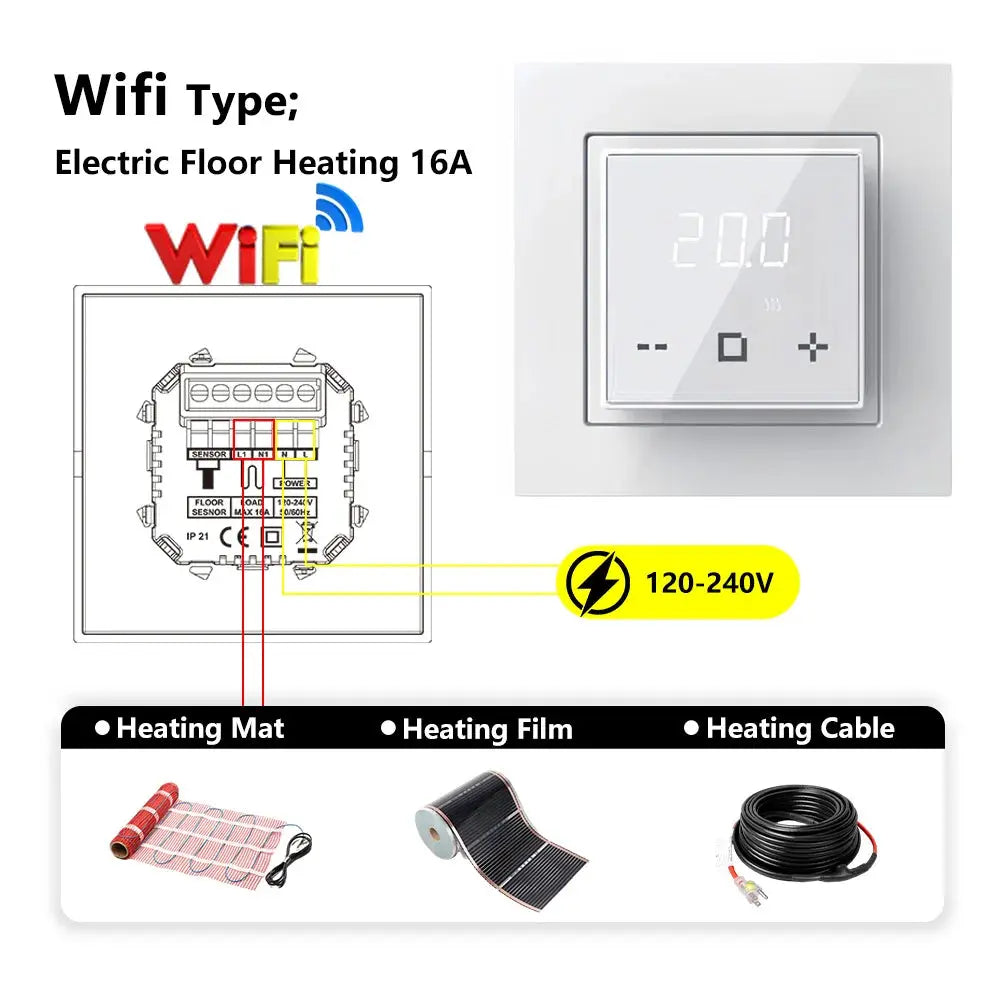

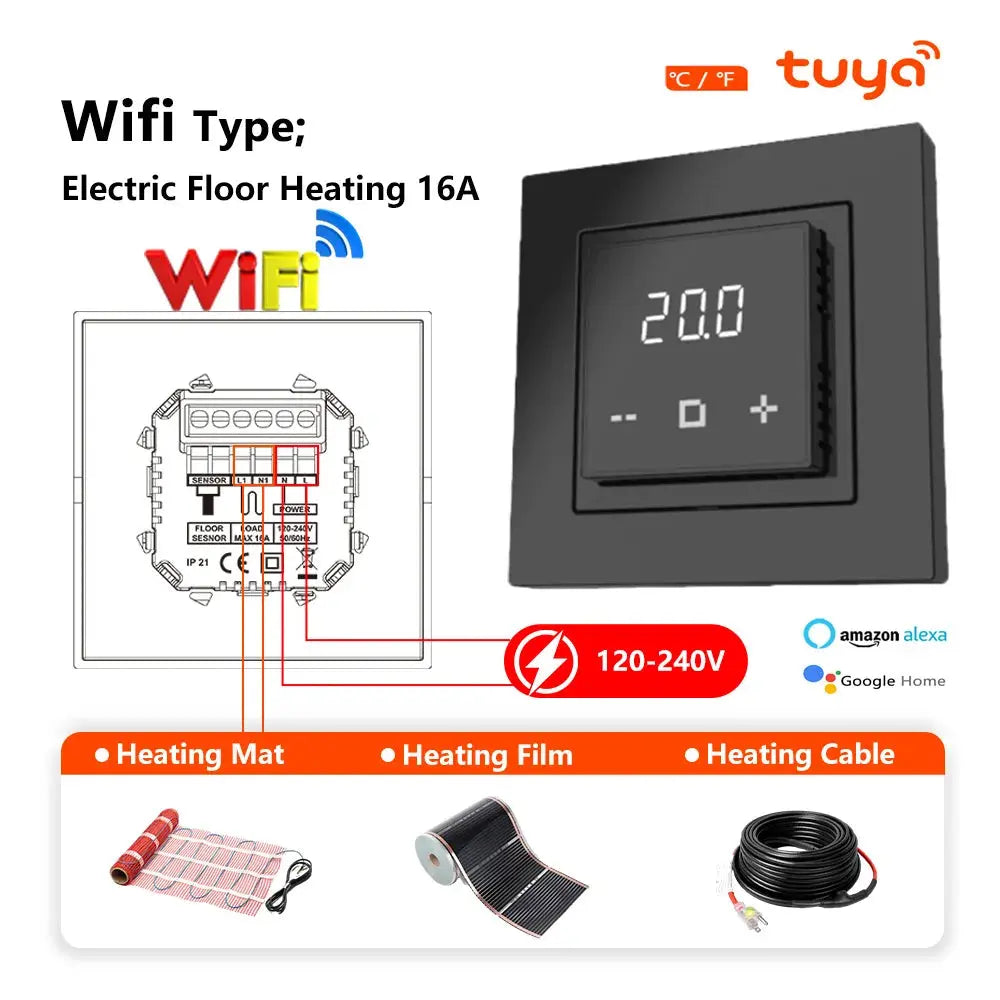

ET43/ET44 Wifi
Voltage: 120~240Vac 50/60Hz
Max Load: 16A（Resistive load）
Wiring specification: ≤2.5mm²
Standby power: < 1W
IP Class: IP21
Floor temperature limit protection: 30℃
ET44 app:Tuya
Three modes are available: 1.Auto mode 2.Hold mode 3.Holiday mode
Suitable for a variety of sensors:
0: 3950 10K
1: 3700 10K
2: 3600 12K
3: 3380 10K
4: 15K

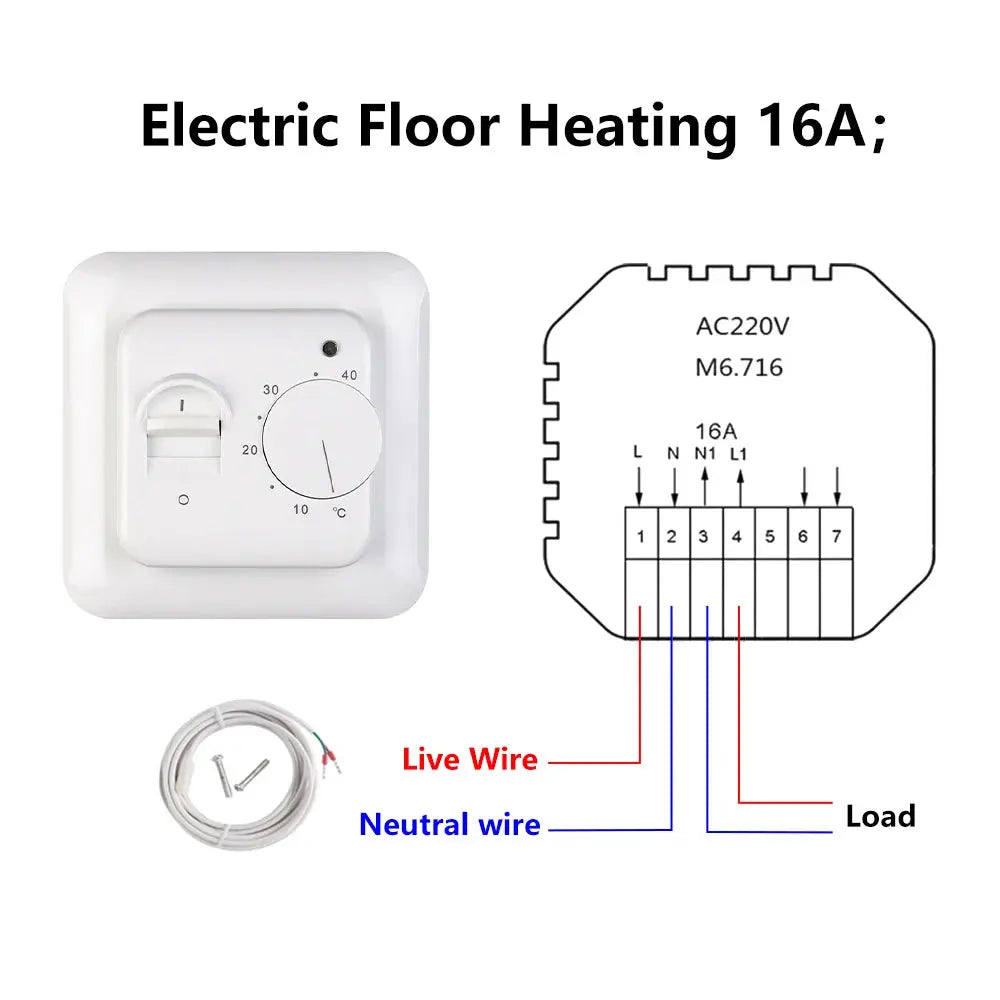

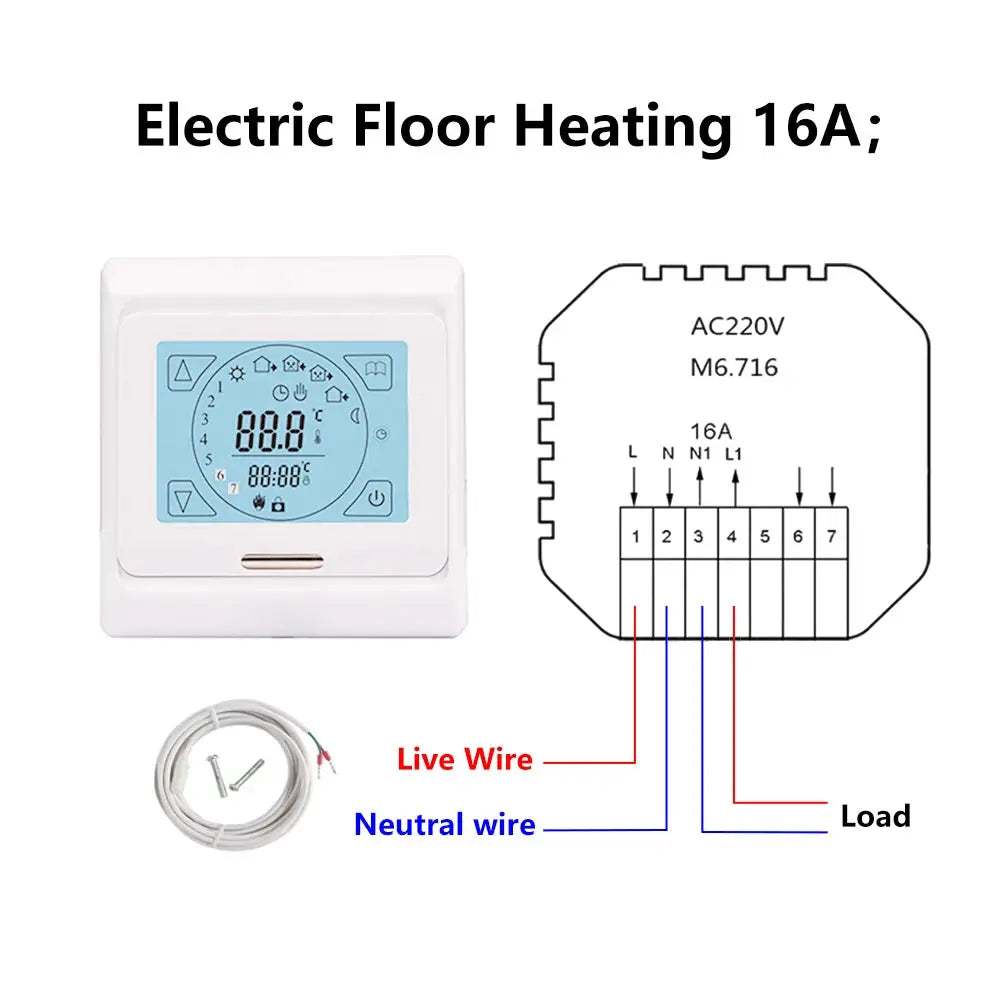

MT26
Working voltage: 220-240 V 50/60Hz.
Load Current: 16A/3600 W.
Remote floor sensor: NTC sensor.
Built-in air sensor: No.
Control limits: + 5℃ ~ + 40℃
Operating temperature:-5℃+ 50℃
Programming: No.
Freezing protection: No.Body material: Self-fading PVC.
Color of plastic: white
Protection class: ip20.

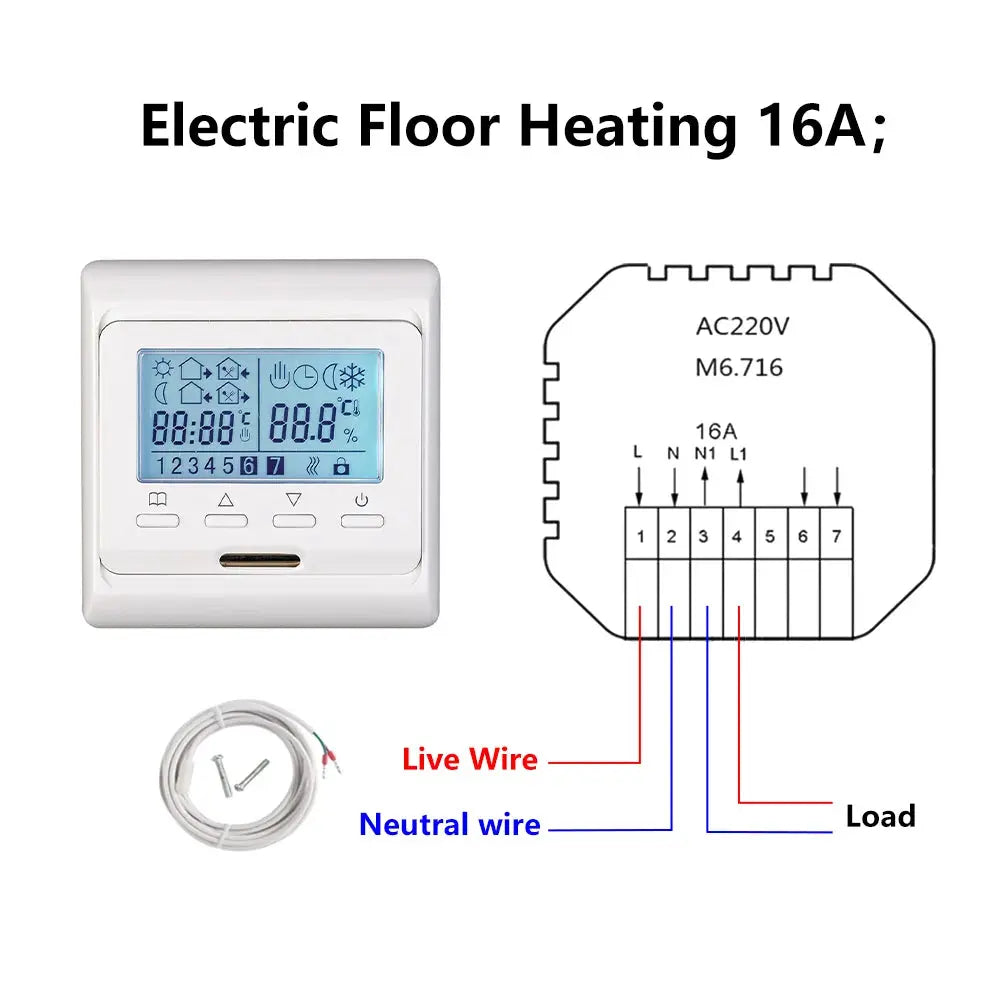

TT16/ST16
Name: Floor heating thermostat
Working voltage: AC 220V/230V 50-60Hz
Temperature adjustment range: 5-90℃(Can adjust to 35-90℃)
Power consumption: <2W
Ambient temperature: -5 ~ 50°C
Limitation Setting：5 ~ 60°C( factory setting : 35 °C)
Protection level: IP20
Accuracy of temperature measurements : 0.5 ~ 10°C adjustable, (factory setting: ± 1°C)
Size: 86x86x13mm
Temperature sensor: NTC1%
Shell material: flame retardant PC
Load current: <3A
Protection level: IP20
Power consumption: 2VA
Load Current: 16A/3600 W

Features

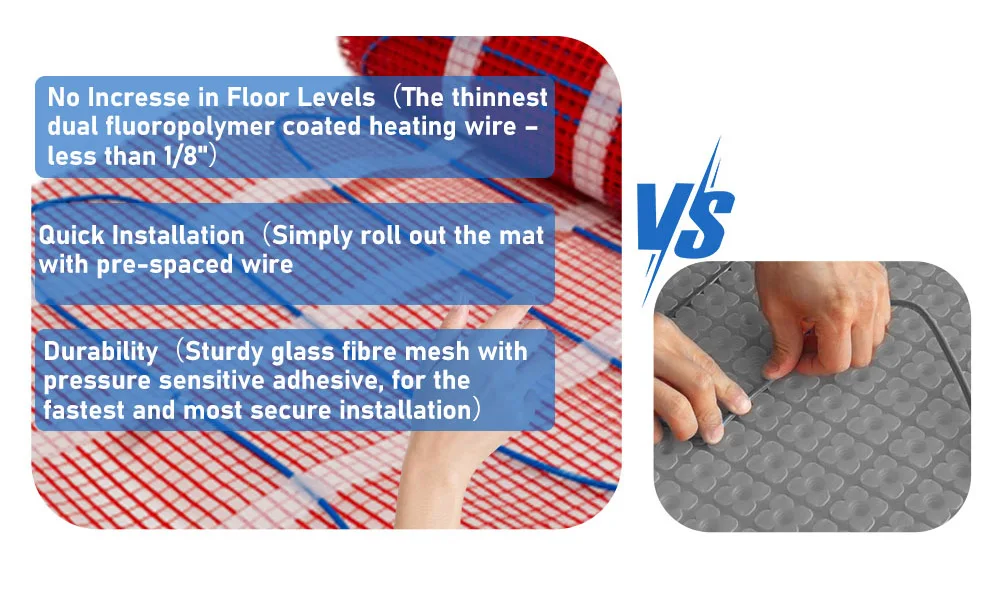

1.Durable Material:Double guide structure,Constructed with anti-flammable PVC+High temperature fluorine materials.Long-lasting structure that lasts the life of the building and requires no maintenance
2.Versatile Power Options:Available in 100W/150W/200W, this mat caters to various heating needs, from timber to high heat loss areas. 3.Ultra-simplified installation process:It comes with self-adhesive on the back,Flexible heating cable,Ensure quick and easy installation.
4.Floor Furnace Heating|Efficient Heating Distribution:Provides even heat distribution, ensuring your entire room is warm with up to 90% efficiency.
5.Zero electromagnetic radiation.

Packing List：

1pcs Heating mat

FAQ

1. Is it possible to cut or shorten the mat?

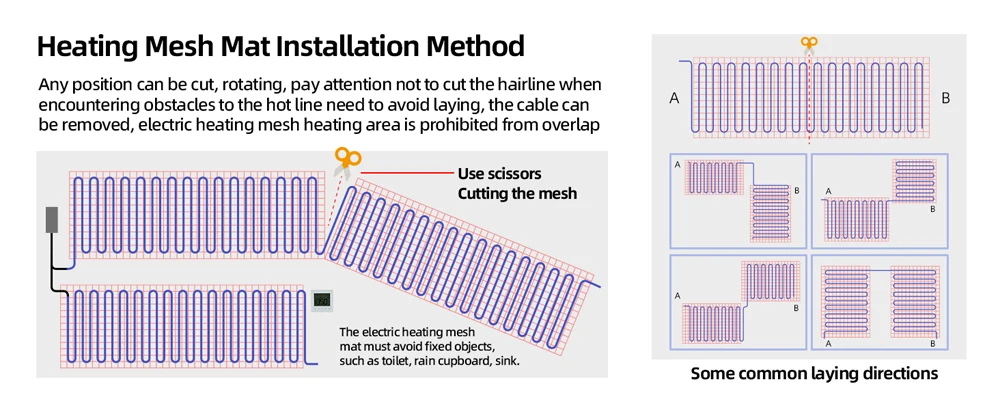

It is forbidden to shorten the heating mat (cutting the heating cable). However, it is possible to cut the mesh to which the heating cable is attached, so that we can adjust the mat to the size of the room.

2. Can heating cables overlap?
It is forbidden to overlap or cross heating mats. The distance between the cables must be at least 8 cm.

3. What glue should be used for assembly?
To glue the substrate, it is necessary to use flexible adhesive for underfloor heating.

4. Is it possible to install a mat under the bathtub or shower tray?
It is prohibited to install the mat under the bathtub or shower tray.

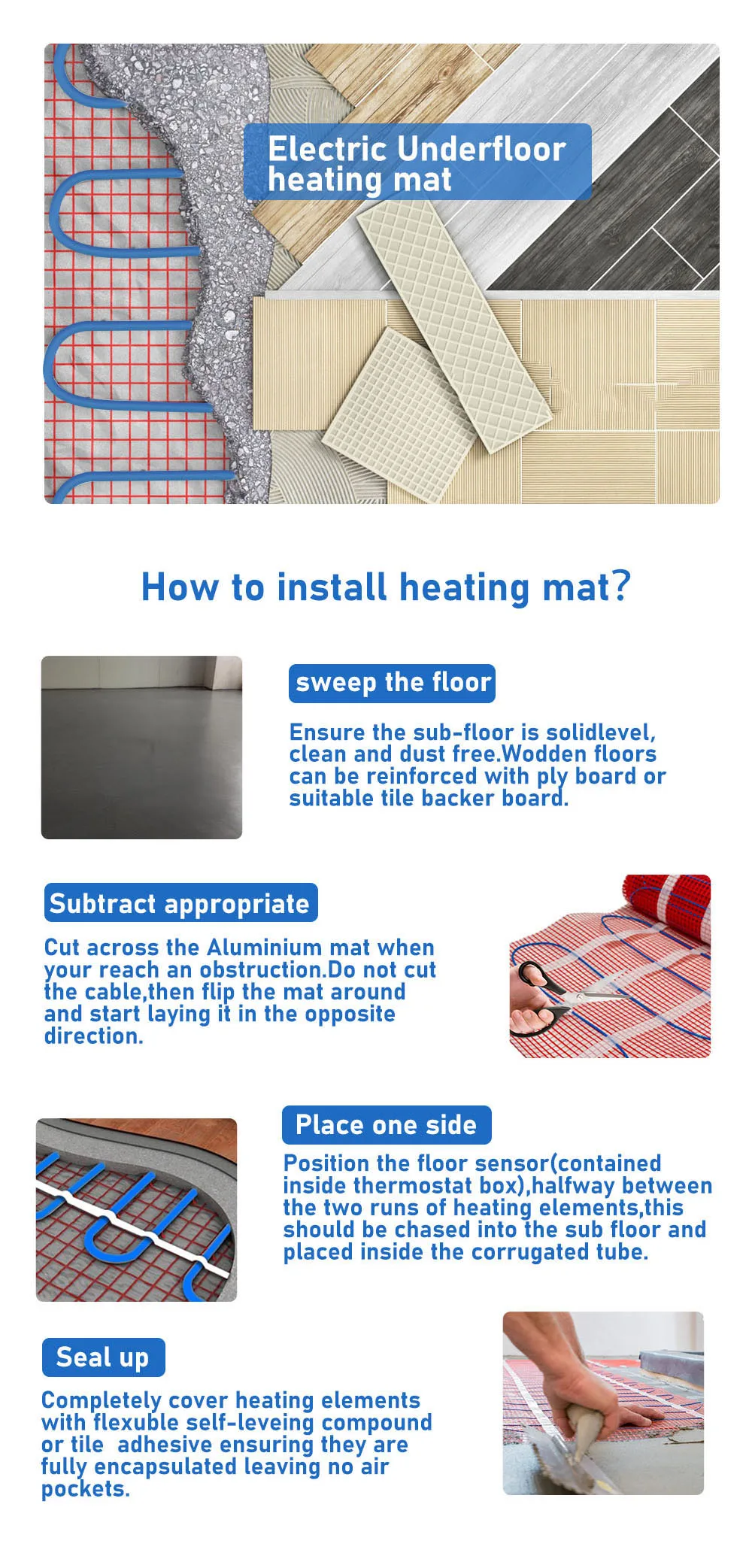

5.Is it possible to assemble the mat yourself?
Yes. However, great care should be taken during installation to avoid damaging the heating cable.

6.Is the heating mat suitable under floor panels?
No, we do not install heating mats under floor panels. We install heating foil under the panels, which is available on our other auctions.

7.Can we connect the mat ourselves?
Unfortunately not. The heating mat is connected by an electrician with valid SEP qualifications.

8.Can a permanent structure be placed above the heating mat?
No, it is not recommended to install the mat under fixed structures and the minimum height of furniture legs above the mat is 3 cm.

9.What to do when the heating mat was damaged during assembly?
It should be reported to the electrician who made the math connection. The cause of the failure may be a malfunction of the controller, thermostat, sensor, damage to wires or mats.

10.How to check if the mat after assembly is working properly?
It is necessary to measure the resistance of the heating vein and insulation and compare them with the parameters in the technical documentation.

11.Is it possible to cross or apply heating cables?
No, the heating floor mat cannot be installed in a way that requires the application or interbreeding of the wires. The minimum interval between the wires should be 8 cm.

12.Can the mat be cut during installation?
It is forbidden to cut the wires, the mat can be shortened only by inciting the mesh.
