Powerful Brushless Electric Scooter Controller 1000W DIY Wiring Easy Setup

Powerful Brushless Electric Scooter Controller 1000W with DIY Wiring Easy Setup is engineered for riders who demand peak performance, reliable control, and flexible compatibility. This 36V-48V, 1000W controller delivers crisp acceleration, smooth throttle response, and robust protection features while letting you tailor the wiring to your specific build. Whether you run hall sensors or a non-hall setup, this unit adapts to your scooter with DIY ease.

Product Gallery

Key Features

• High-performance 1000W brushless scooter controller for 36V–48V systems
• Wide voltage range: Rated Voltage 36V/48V; Low Voltage 31V/42V ±0.5V; Peak current up to 40A
• Hall sensor compatible or non-hall configuration – flexible for different motor setups

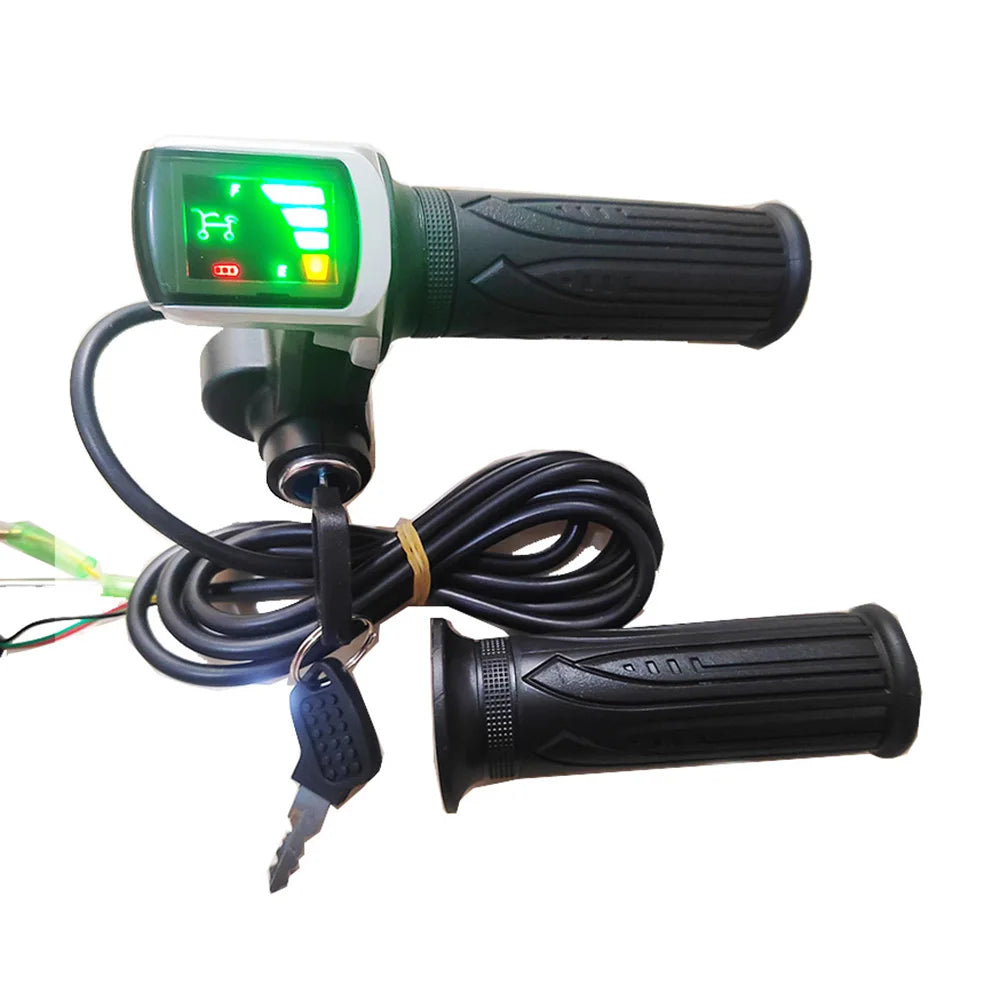

• Two instrument wires: green for pointer-type gauges, purple for LCD instruments

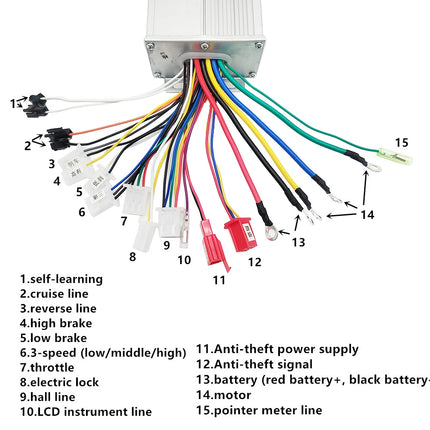

• Comprehensive signal lines: motor, battery, throttle, electric lock, hall, self-learning, low/high brake, 3-speed, reverse, cruise speed, anti-theft power and alarm
• Self-learning functionality to set wheel direction with easy docking
• Remote features: cruise control and anti-theft integration for added security
• DIY wiring with color-moding: red-to-red, green-to-green, black-to-black for throttle connections
• Note: Wiring sequence may vary due to factory differences; buyers may need to adjust wiring to align colors

Wiring & Setup

This controller is designed for DIY assembly and flexible motor configurations. Because products come from different factories, the wiring sequence may not perfectly match out of the box. Simply align the color codes and configure the wiring to your instrument type and motor, then test and calibrate. Key setup steps include:

• Connect the motor line (color to color)
• Connect the battery line (red to +, black to -)
• Connect the controller throttle line and the electric lock line (must connect)
• Connect the hall line
• Dock the two self-learning lines to set forward or reverse (if wheel goes forward, separate the self-learning line; if wheel goes reverse, re-dock and separate accordingly)
• Other functions can be connected as needed

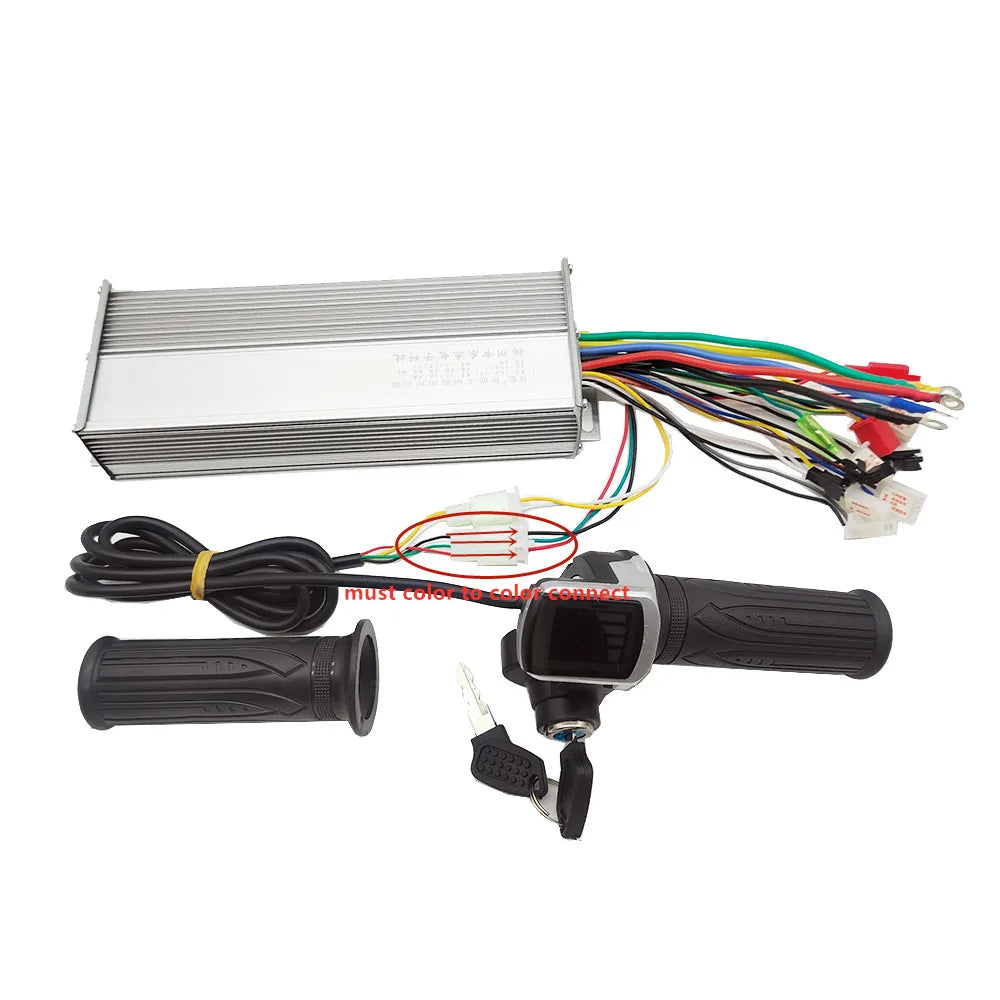

• Important: throttle wiring requires red-to-red, green-to-green, black-to-black; buyer should DIY to match the wiring
• In short, this controller pairs powerful performance with versatile compatibility, but a DIY setup is required to ensure correct wiring for your specific build

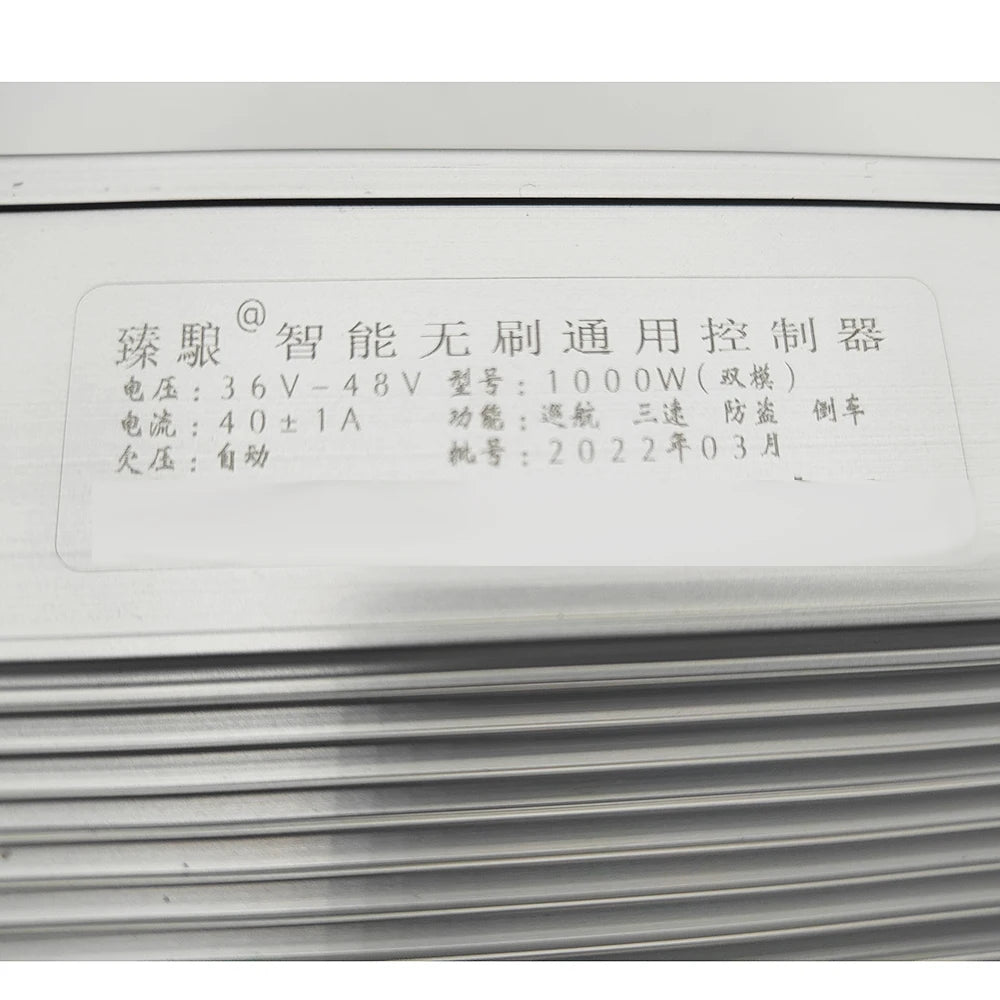

Specifications & Compatibility

• Rated Voltage: 36V/48V
• Low Voltage: 31V/42V ±0.5V
• Rated Power: 1000W
• Limit Current: 40A
• Compatibility: Works with hall sensor-equipped motors or without hall sensors

Why Choose This Controller

Choose this 1000W brushless controller for a winning combination of power, versatility, and DIY adaptability. It delivers strong torque and smooth throttle response across a wide voltage range, supports advanced features like cruise control and anti-theft lines, and accommodates both hall sensor and non-hall motor setups. The DIY wiring approach means you can tailor the connections to your specific motor, instrument type, and wheel direction without being locked into a rigid, one-size-fits-all solution. Note that some tuning may be required due to factory variations, but the end result is a highly capable, customizable controller that helps your electric scooter reach its full potential.
